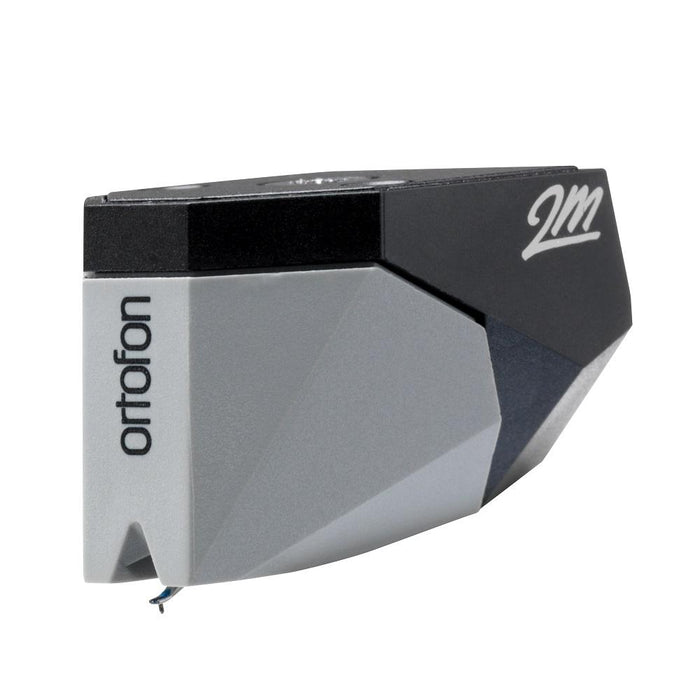

Ortofon 2M 78 Phono Cartridge

Ortofon 2M 78 Phono Cartridge

by Ortofon
€0.00
€0.00 - €0.00
€0.00
€149.00
€149.00 - €149.00
€149.00

or pay €29.80 today, and 4 Fortnightly payments of €29.80 Interest free with   more info

Availability: 1 in stock
 More payment options

The 2M Series of cartridges from Ortofon have been designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.

The pre-existing range of 2M cartridges have rapidly been established as a reference point for all good moving magnet cartridges. From the introductory Red, through to the high-end Black; 2M is now a go-to name in moving magnet technology.

2012 sees Ortofon open up new markets within the same design principle of 2M. The 2M 78 and 2MMono offer users of older, rare vinyl a higher-quality playback medium than had previously been available.

The 2M 78 features an improved True Mono engine, which provides a high level of sonic accuracy, as well as expertly cut Spherical diamond that is perfect for playback of 78 rpm records (which require a larger stylus profile).

Technical Data:

Output Voltage (at 1kHz, 5cm/sec): 4mV
Frequency Range (at -3dB): 20 Hz - 22 kHz
Frequency Response 20Hz - 20kHz: +3 / -1dB
Tracking Ability at 315Hz: Typically 70μm
Compliance, Dynamic, Lateral: 18μm / mN
Stylus Type: Spherical
Stylus Tip Radius R: 65μm
Tracking Force Range: 1.6 - 2.0g (16 - 20mN)
Recommended Tracking Force: 1.8g (18mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance: 700Ω
Internal Inductance: 300mH
Recommended Load Resistance: 47kΩ
Recommended Load Capacitance: 150 - 300pF
Cartridge Colour Body / Stylus: Black / Grey
Cartridge Weight: 7.2g
Replacement Stylus Unit: 2M 78 Stylus
