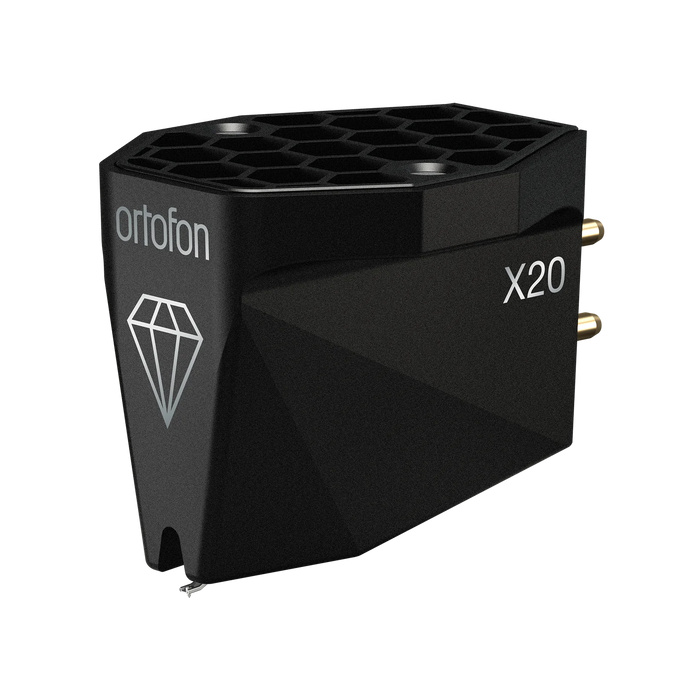

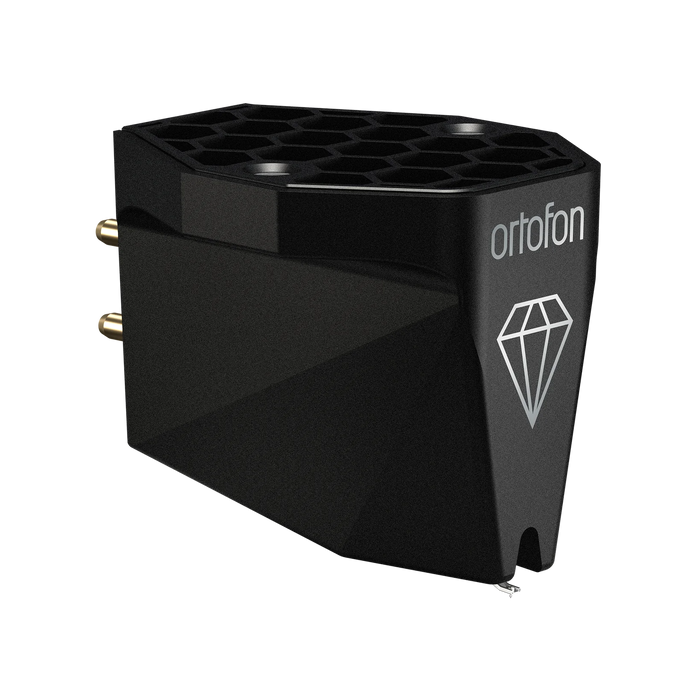

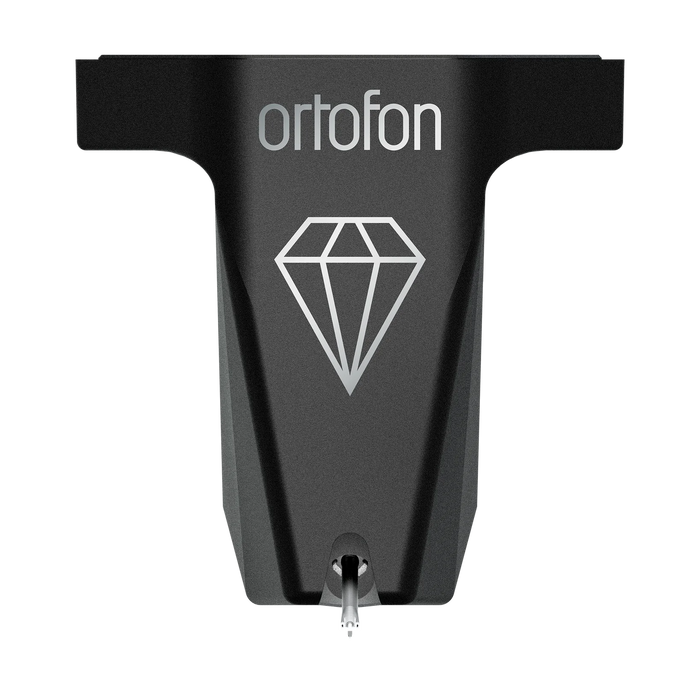

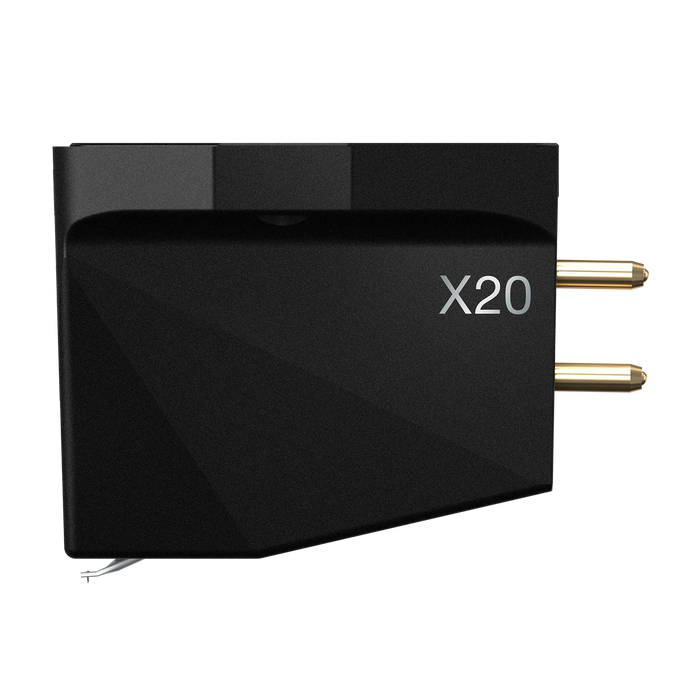

Ortofon MC X20 Moving Coil Cartridge

The Ortofon MC X20 is a premium low-output moving coil cartridge that blends advanced engineering with musical finesse. Designed for audiophiles who demand high-resolution playback with dynamic range, tonal neutrality, and precision, the MC X20 delivers immersive sound reproduction across the entire frequency spectrum. As part of Ortofon’s X-series, it carries forward decades of innovation and craftsmanship from the world’s leading cartridge manufacturer.

Key Features:

  • Low Output MC Design: Provides superior resolution, detail, and soundstage depth, perfect for high-end phono stages.
  • Nude Fine Line Stylus: Accurately traces groove modulations for extended high-frequency response with minimal distortion.
  • Boron Cantilever: Lightweight and rigid for fast, controlled tracking and low coloration.
  • Improved Damping and Magnet System: Offers enhanced channel separation and dynamic responsiveness.
  • Handmade in Denmark: Precision-assembled by Ortofon’s skilled craftsmen for consistency and quality.

Technical Specifications:

Specification Details
Output Voltage 0.2 mV (1kHz, 5cm/sec)
Channel Separation >25 dB (1kHz)
Frequency Range 20 Hz – 29 kHz
Tracking Force Range 2.2 – 2.5 g (Recommended: 2.3 g)
Stylus Type Nude Fine Line
Cantilever Boron
Internal Impedance 5 Ohms
Recommended Load Impedance >20 Ohms
Weight 9 g

The Ortofon MC X20 offers an extraordinary level of detail and musicality, making it an excellent choice for vinyl enthusiasts looking to elevate their analog system with a refined and high-performance cartridge.
