Innovative Design for Optimal Sound Performance
The Lyngdorf CS-1 loudspeaker is engineered with a unique horizontal configuration. Its front-ported bass reflex enhances bass response within enclosed spaces, while the tweeter is elevated and angled for reduced sound diffractions from cabinet edges. This design ensures optimal sound radiation, providing a clear, immersive listening experience from any in-cabinet placement.
High-Quality Components for Premium Audio
To achieve the best sound quality, the Lyngdorf CS-1 utilizes the same high-performance midrange/bass driver and tweeter found in the acclaimed FR-1 two-way loudspeaker. The design and acoustic tuning of the CS-1 have been specially refined for in-cabinet use, making it the ideal choice for those looking for high fidelity in a compact form.

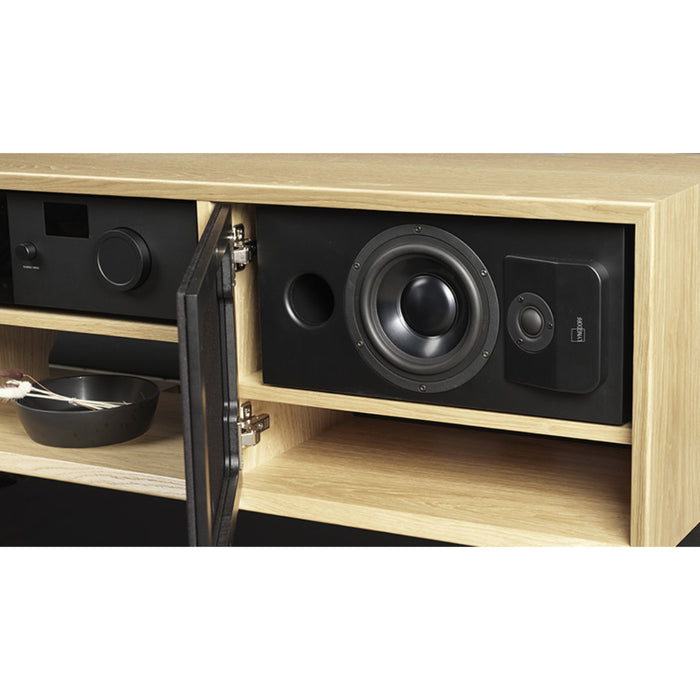

Designed for Easy and Durable In-Cabinet Placement
Constructed from sturdy MDF with a sleek matte-black lacquer finish, the CS-1 is both durable and easy to maintain. The speaker includes self-adhesive rubber pads to prevent scratches on furniture surfaces and to reduce resonance, ensuring a stable and clear audio experience.

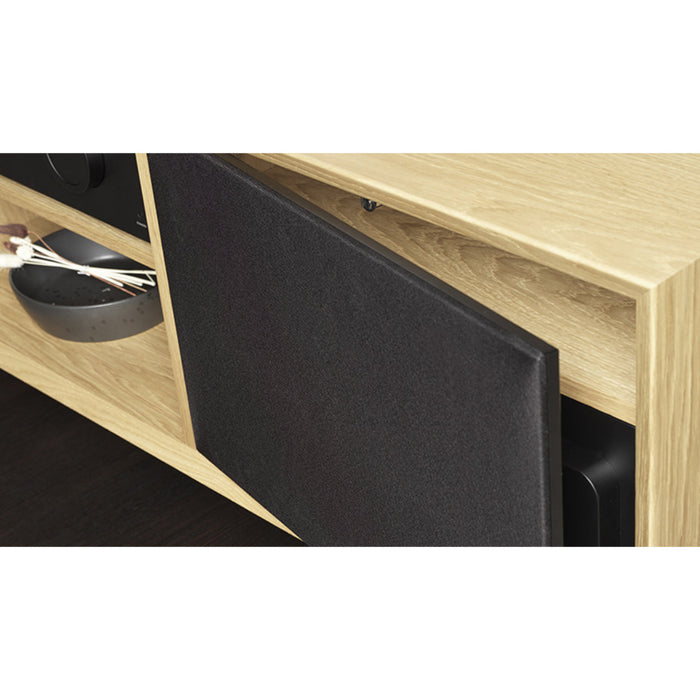

Unobstructed Sound Clarity
The Lyngdorf CS-1 is designed without a front grille to offer the purest sound performance, perfect for placement behind fabric-fronted TV furniture. Experience high-quality, unfiltered sound that fits seamlessly into your home décor.
Specifications:
-
Description: 2-way speaker with angled tweeter and front-ported bass reflex
-
Power handling: 100 W
-
Tweeter: Size 1″, textile soft dome, PTC protection
-
Midrange/bass driver: Size 6.5″, 35 mm voice coil, cone material: aluminum, die cast basket, vented magnet
-
Enclosure: Bass reflex, front ported, full MDF construction, volume: 15 litres
-
Frequency response: 42 to 22,000 Hz (-3dB)
-
Nominal impedance: 4 Ohm
-
Sensitivity: 88 dB (2.83V/1m)
-
Crossover point: 2.2 kHz
-

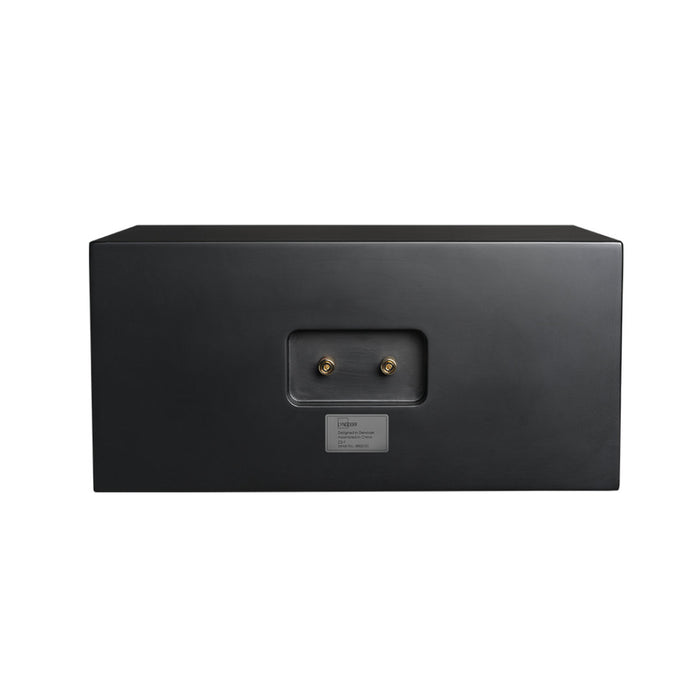

Connections: Binding posts
-
Placement options: Horizontal, inside furniture and cabinets
-
Dimensions (W x H x D): 42.0 x 20.0 x 29.5 cm / 16.5 x 7.9 x 11.6 inches
-
Weight: 7.9 kg / 17.4 lb
-
Finish: Matte black
