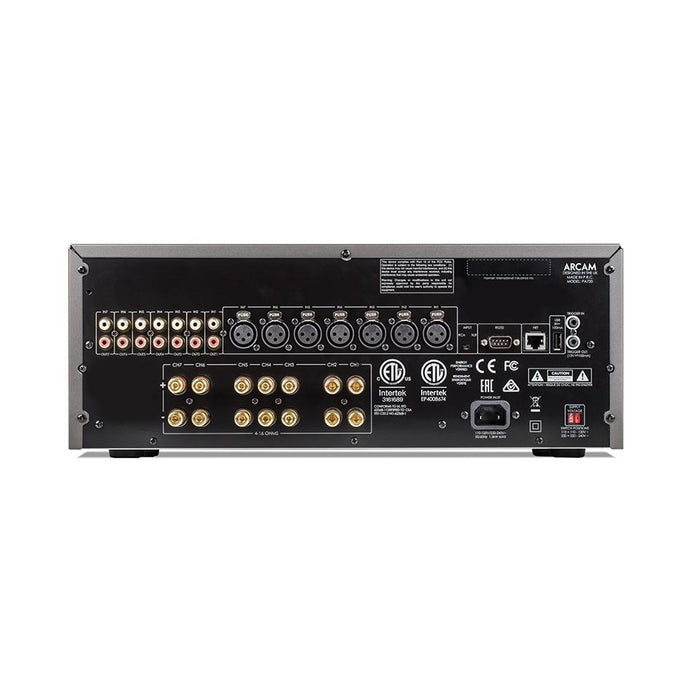

Arcam PA720 7 Channel Power Amplifier

by Arcam
Original price €3,599.00
Original price €3,599.00 - Original price €3,599.00
Original price €3,599.00
Current price €3,399.00
€3,399.00 - €3,399.00
Current price €3,399.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

Key Features

  • 7 Channel Power Amplifier
  • 7 x 140W Class G amplification (all channels driven)
  • Class G amplification with 20W of Class A operation
  • Toroidal transformer
  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs
  • PA720
  • Exceptional Power, Immersive Sound

The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Continuous power output at 0.2% THD per channel Seven channels driven, 4Ω / 8Ω, 1kHz, 140W / 100W
Five channels driven, 4Ω / 8Ω, 1kHz, 175W / 110W
Two channels driven, 4Ω / 8Ω, 1kHz, 225W / 140W
Harmonic distortion, 80% power, 8Ω at 1kHz, 0.002%
Inputs Input sensitivity 100W / 8Ω - 800mV RMS, 1.6V RMS
Signal/Noise ratio (A-wtd) 100W / 8Ω - 112dB
Input impedance - 10kΩ
Frequency response - 20 - 20kHz +/-0.05dB
General Mains voltage - 110–120V or 220–240V, 50–60Hz
Maximum power consumption - 1.5kW
Low power standby consumption - 0.5W
Network standby consumption - 2W
Dimensions W x H x D (including feet, control knob and speaker terminals) - 433 x 425 x 177mm
Weight (gross) - 19.7kg
