Arcam SA10 Integrated Amplifier

by Arcam
Original price €899.00 - Original price €899.00
Original price €899.00
€899.00
€899.00 - €899.00
Current price €899.00
Available to order (with lead time)
For latest lead times or to put down a deposit please contact us
In a rush? See what's available for immediate dispatch

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

Key Features

  • Extremely efficient class A/B amplification
  • 50W of power per channel
  • 5 analogue inputs including phono
  • 3 digital inputs
  • 32-bit DAC,Sabre ESS9016K2M
  • Full I/P control
  • Total harmonic distortion + noise = 0.003%

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

SA10

In any amplifier, the signal path is at the mercy of anything that creates noise within the unit. Thus, we spare no expense in using only the most high-quality components, even if it means the cost of our power supplies overtaking that of everything else.

The result, of course, is worth every penny.

A singer’s sharp intake of breath before hitting the chorus, a guitarist’s fingers sliding against the strings – it’s those seemingly minor details that can bring music to life. Fish out one of your all-time favourite albums and play it through a Bluetooth speaker, and guess what? Its sounds like a Bluetooth speaker. Play it through the SA10, and it’s as close to hearing the artist’s performance as you’re likely to get. There’s always joy in digging out an old recording you haven’t heard in years. With the HDA range, it’ll feel like hearing it forthe first time.

Both Channels, 8Ω, 20Hz—20kHz 50W
Single Channel, 4Ω, at 1kHz 90W
Harmonic Distortion, 80% Power, 8Ω at 1kHz 0.003%
Input Sensitivity At 1kHz 5mV
Input Impedance 47kΩ + 100pF
Frequency Response (ref. RIAA curve) 20Hz – 20kHz ± 1dB
Signal/Noise Ratio (A-wtd) 50W, ref. 5mV Input 80dB
Overload Margin, Ref. 5mV at 1kHz 21dB
Nominal Sensitivity 1V
Input Impedance 10kΩ
Maximum Input 6Vrms
Frequency Response 20Hz – 20kHz ± 0.2dB
Signal/Noise Ratio (A-wtd) 50W, ref. 1V Input 106dB
DAC ESS9016K2M
Frequency Response 20Hz - 20kHz ± 0.05dB
Total Harmonics Distortion + Noise 0.0007%
Signal/Noise Ratio (A-wtd) 115dB
Supported Sample Rates (Optical) 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Supported Sample Rates (Coaxial) 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Depth 16-bit – 24-bit
Nominal Output Level 630mV
Output Impedance 230Ω
Maximum Output Level Into 600Ω 5Vrms
Output Impedance
Load Range 16Ω – 2kΩ
Mains Voltage 110–120V or 220–240V, 50–60Hz
Maximum Power Consumption 350W
Dimensions W x H x D (including feet, control knob and speaker terminals) 433 x 87 x 310mm
Weight (Net) 8.4kg
Weight (Gross) 10.7kg
Supplied Accessories Mains leads

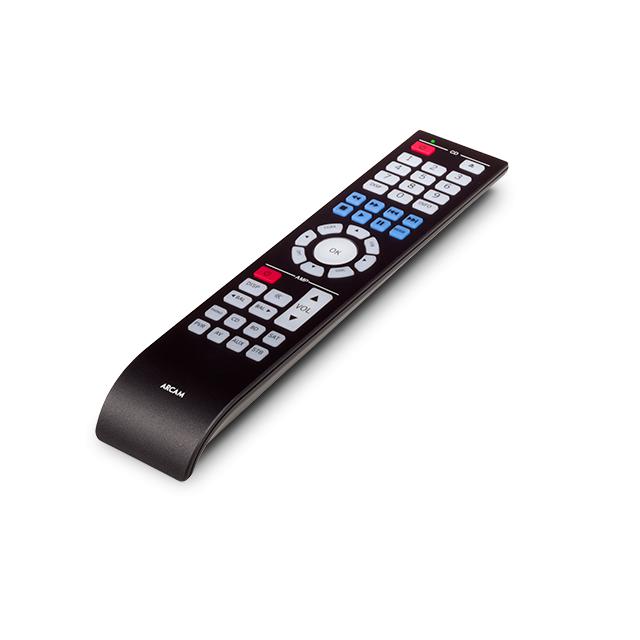

Remote control
2 x AAA batteries
