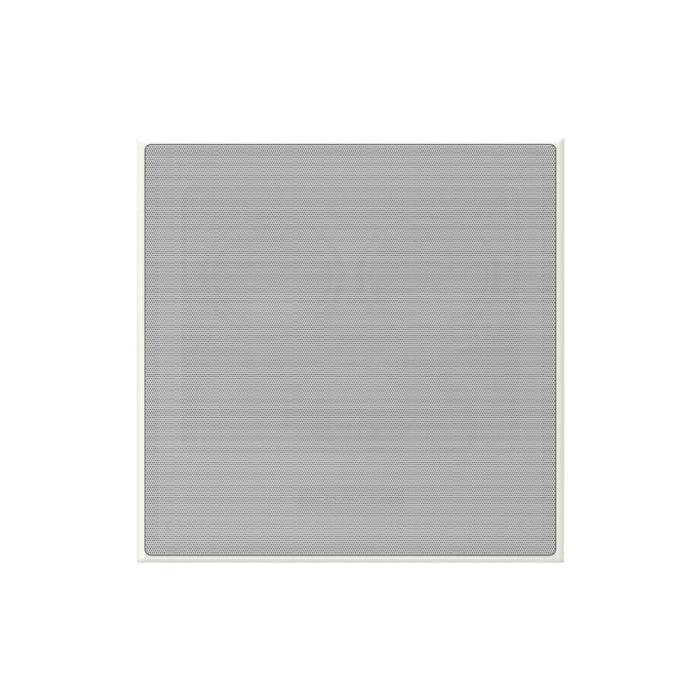

Bowers & Wilkins CCM7.3 S2 In-Ceiling Speaker (Single)

Original price €2,100.00 - Original price €2,100.00
Original price €2,100.00
€2,100.00
€2,100.00 - €2,100.00
Current price €2,100.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Key Features:

  • Carbon Dome tweeter
  • Continuum cone FST midrange
  • Aerofoil profile bass cones

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.

Specifications:

  • Description: Description 3-way in-ceiling system
  • Drive units: 1x ø25mm (1in) Carbon Dome high-frequency, 1x ø100mm (4in) Continuum cone FST midrange, 2x ø130mm (5in) Aerofoil profile bass
  • Frequency range: (-6dB) -6dB at 52Hz and 33kHz
  • Frequency response: -3dB 55Hz - 28kHz ±3dB
  • Sensitivity: 90dB spl (2.83Vrms, 1m)
  • Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz, <0.5% 120Hz - 33kHz
  • Nominal impedance: 8Ω (minimum 3.1Ω)
  • Recommended amplifier power: 25W - 200W into 8Ω on unclipped programme
  • Frame height: 355mm (14in)
  • Frame width: 355mm (14in)
  • Depth: 194.5mm (7.66in)
  • Cut-out height: 332mm (13.1in)
  • Cut-out width: 332mm (13.1in)
  • Cut-out height w/PMK: 335mm (13.2in)
  • Cut-out width w/PMK: 335mm (13.2in)
  • Protrusion: 8mm (0.3in)
  • PMK: 7C
  • Net weight: 9kg (Inc accessories)
