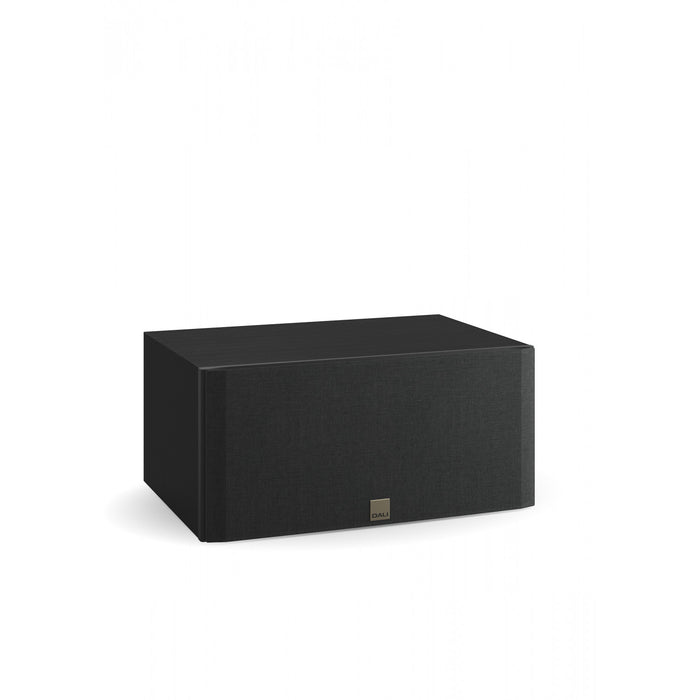

The OPTICON VOKAL MK2 enclosure dimensions and proportions are specifically configured to enable its installation in audio-visual furniture units, and its front facing reflex ports mean that even fully enclosed mounting is feasible. The OPTICON VOKAL MK2 is specifically voiced to play the centre channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.
The new series has six models in the range all benefit from the latest in new technologies and innovations to offer class-leading performance that defines TRUE HIFI!. DALI OPTICON MK2 is available in the following models: 1, 2, 6, 8, LCR and VOKAL.

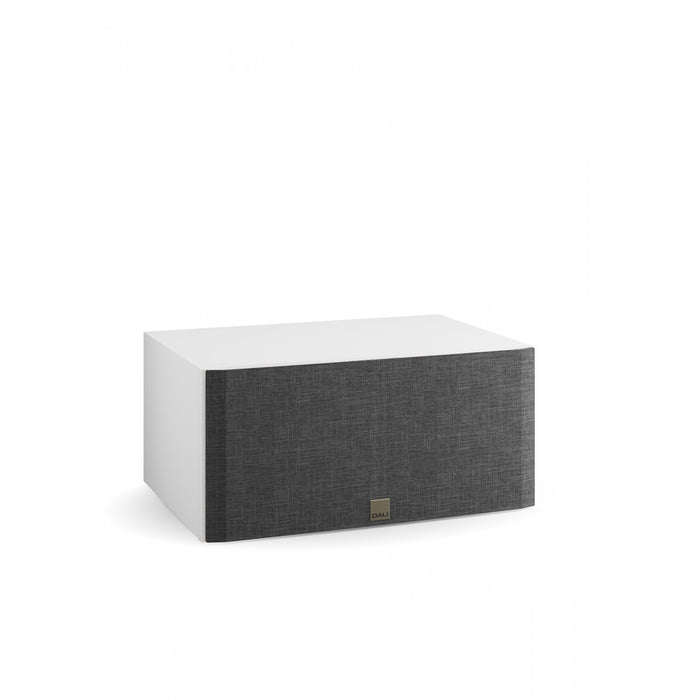

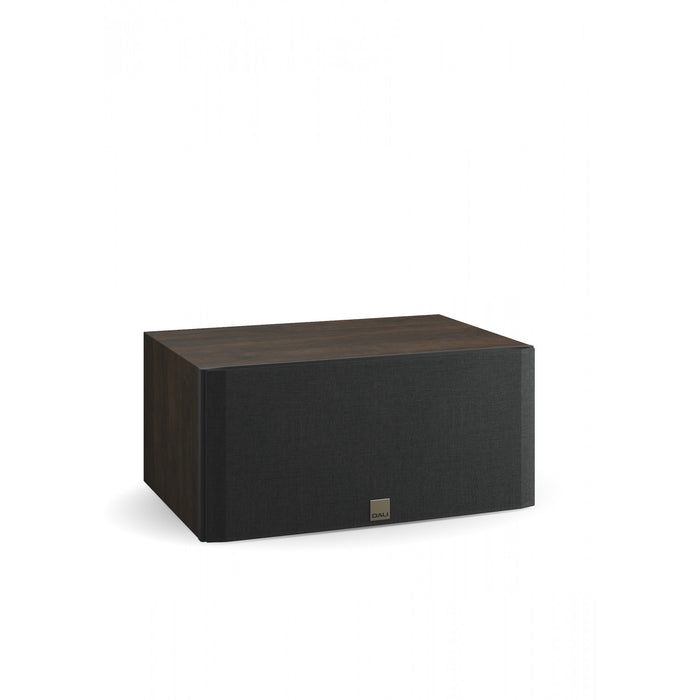

Their fresh new aesthetic design offers a significant visual upgrade from the original OPTICON series. The front baffle appears in either white or black matte and provides a rigid foundation for the drivers. The baffles are complimented by three new cabinet finishes; Satin Black, Satin White or Tobacco Oak*. The MK2 grilles are also covered in a new furniture grade textured fabric, in black for the two darker finishes and a light grey for the white finish.
The tweeters have been upgraded to a 29mm soft dome tweeter, which has been derived from the CALLISTO series. These are used across all six OPTICON MK2 models. The new tweeter faceplates are made from cast aluminium and provide the speakers with a fantastic new DALI signature look. The bass and mid-range drivers incorporate the unique DALI wood fibre diaphragms and the SMC (Soft Magnet Compound) technology derived from the flagship DALI EPICON series.
Further upgrades on the MK2 series include the Dual Flare reflex ports, resulting in reduced turbulence and noise from the cabinet. The crossovers have also been re-designed with upgraded components to minimise loss even further. The OPTICON MK2 series will appeal to true music lovers, movie fanatics and audiophiles alike, offering a wide selection of speakers to suit every room and occasion.
|Frequency range (+/-3 dB) [Hz]
||47 - 30.000
|Sensitivity (2.83V/1m) [dB]
|Nominal Impedance [ohm]
|Maximum SPL [dB]
|Recommended Amplifier Power [Watt]
|Crossover frequency [Hz]
||2.400 / 14.000
||2 + 1⁄2-way
|High frequency driver
||1 x 29 mm soft dome
1 x 17 x 45 mm ribbon
|Low Frequency / mid-range Driver(s)
||1 x 6 1⁄2”
|Bass Reflex Tuning Frequency [Hz]
|Recommended distance from rear wall to speaker’s rear panel [cm]
||0 - 30
|Dimensions (H x W x D) [mm]
||201 x 435 x 312
|Dimensions (H x W x D) [inches]
||7.9 x 17.1 x 12.3
||9.2 / 20.2
||Rubber feet, manual
