iFi Audio Zen CAN Signature HFM - Headphone Amplifier

Original price €354.00 - Original price €354.00
Original price €354.00
€354.00
€354.00 - €354.00
Current price €354.00
Available to order (with lead time)
For latest lead times or to put down a deposit please contact us
In a rush? See what's available for immediate dispatch

Love your HIFIMAN headphones? Then the ZEN CAN Signature HFM analogue headphone amplifier with ActivEQ is for you.

Finely tuned.

The original ZEN CAN, our all-analogue headphone amplifier, had the ability to drive tough headphone loads with a balanced circuit design, vanishingly low levels of distortion and exceptional sonics. The ZEN CAN Signature 6XX pushed this design even further with sonic tailoring specific to the ‘MassDrop x Sennheiser HD 6XX headphone’.

Now, we’ve finely tuned a brand new ZEN CAN Signature to work with HIFIMAN headphones – the ZEN CAN Signature HFM.

This custom ActivEQ setting is expertly tuned across the entire frequency response curve to bring out the best in these already remarkable headphones.

iFi’s ActivEQ

Our ActivEQ feature combines active and passive components to create a specific EQ curve to suit a particular pair of headphones. This is performed in the analogue domain without adding any additional noise or distortion.

The ZEN CAN Signature HFM features an ActivEQ finely tuned towards HIFIMAN’s planar headphones.

HIFIMAN headphones offer remarkable transparency and present wide-open sound staging. The ZEN CAN Signature HFM enhances the texture of the deep bass and injects more immediacy into the upper mid-range.

One EQ. Many models.

Pressing the HFM button on the ZEN CAN Signature HFM calibrates its signal to complement the headphone’s response characteristics right across the frequency range. This then tunes its performance to work with HIFIMAN headphones.

Excellent results are found with the Sundara, HE-4XX, HE-400S, Edition X, HE-5 headphones to name but a few. Take a look at our HIFIMAN Curve and Compatibility chart.

As with our previous ZEN CAN Signature model, this feature can be switched on or off. Without ActivEQ engaged, the ZEN CAN Signature HFM’s performance is cleverly balanced to bring out the best in all other headphones and in-ear monitors.

Gain, gain and more gain.

The ZEN CAN Signature HFM has four gain settings in six dB steps – 0dB, 6dB, 12dB and 18db. We’ve called this PowerMatch.

This enables the amp to precisely suit the connected headphones. Unity gain (0dB) is useful to ensure low noise with sensitive in-ear monitors, while the higher gain settings make the most of tougher headphone loads, delivering excellent dynamic headroom.

XSpace

This analogue processing mode compensates for the ‘in-head localisation’ effect that can occur when using headphones to listen to music that was mixed using a pair of speakers.

It widens the headphone soundstage to deliver a more spacious and speaker-like experience.

Nothing beats Balanced

The ZEN CAN Signature HFM’s circuitry is a balanced, symmetrical dual-mono design – a topology usually reserved for high-end headphone amps – with a number of key elements trickled down from the discrete Class A circuitry developed for iFi’s flagship headphone amplifier, the Pro iCAN.

Key components have been upgraded to enhance performance in line with the improvements made to the ZEN CAN Signature HFM, including the use of Panasonic OS-CON and Elna Silmic II capacitors.

Force of nature

The amp provides superb drive capability, delivering 1600mW (7.2V) into 32 ohms from the single-ended output, with 15V+ available to loads of 600 ohms or more through the balanced output.

The ZEN CAN Signature HFM continues the reputation of its predecessors and delivers ultra-low distortion, rich sonic detail, and engaging dynamics and the ability to drive all manner of headphones with ease. It’s a force of nature.

Stay connected

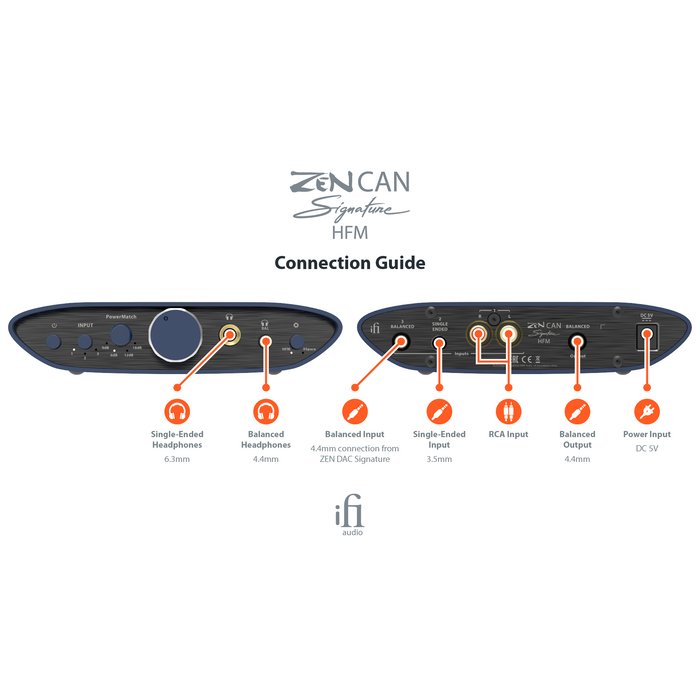

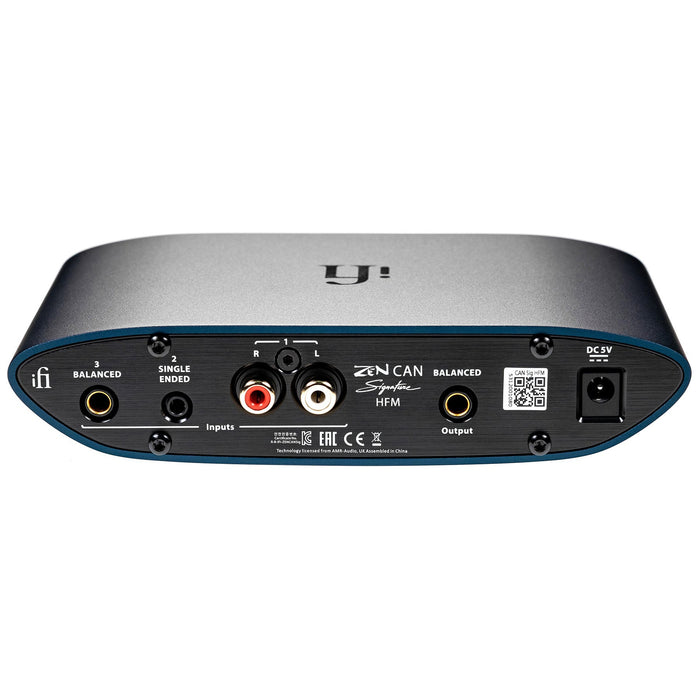

The ZEN CAN Signature HFM offers stereo RCA and 3.5mm single-ended inputs, plus a 4.4mm Balanced input. There is also a 4.4mm balanced output so you can connect to power amps equipped with a balanced input.

It features a pair of headphone outputs – a 6.3mm output for headphones that have a standard single-ended connector (compatible with all headphones) and a 4.4mm Balanced output for headphones offering balanced connection.

An increasing number of high-quality headphones and in-ear monitors either come so equipped or give the option of detaching the cable and upgrading to a 4.4mm Balanced connector, and this output makes the most of them (it is particularly recommended for high-impedance headphones).

Cracking combo

The ZEN CAN Signature HFM can be combined with the new ZEN DAC Signature V2.

When used together, the two ZEN Signatures make an unbeatable, desktop-sized headphone system for both digital and analogue listening.

Inputs

  • RCA: 3.5 (SE), 4.4mm (BAL))
  • Headphone output: 6.35mm, 4.4mm
  • Gain: 0/6/12/18 dB adjust
  • THD+N: 0.0066% (BAL), 0.0058% (SE)

Output Impedance (HP)

  • BAL: <2 Ohms
  • SE: <1 Ohm
  • Balanced line out: 200 ohms
  • SNR: 122 dB (BAL)
  • Dynamic range: -122 dB (BAL)
  • Freq response (-3dB): 10–200k Hz
  • Function: HFM adaption and/or XSpace; Bypas
  • IMD: 0.01%

Power

  • Max out (16o): 3/4V, 600/1000mW (BAL/SE)
  • Max out (300o): 5.1/7.6v, 756/196mW (BAL/SE)
  • Max out (600o): 15.2/7.6v, 385/98mW (BAL/SE)
  • Maximum power consumption: 13 W / 2.6A

General

  • Dimensions (WDH): 160 x 117 x 35mm
  • Weight: 1.87 Ibs (0.85 kg)
