JBL S4700 Floorstanding Speaker (Pair)

by JBL
Original price €19,798.00 - Original price €19,798.00
Original price €19,798.00
€19,798.00
€19,798.00 - €19,798.00
Current price €19,798.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: Cherry

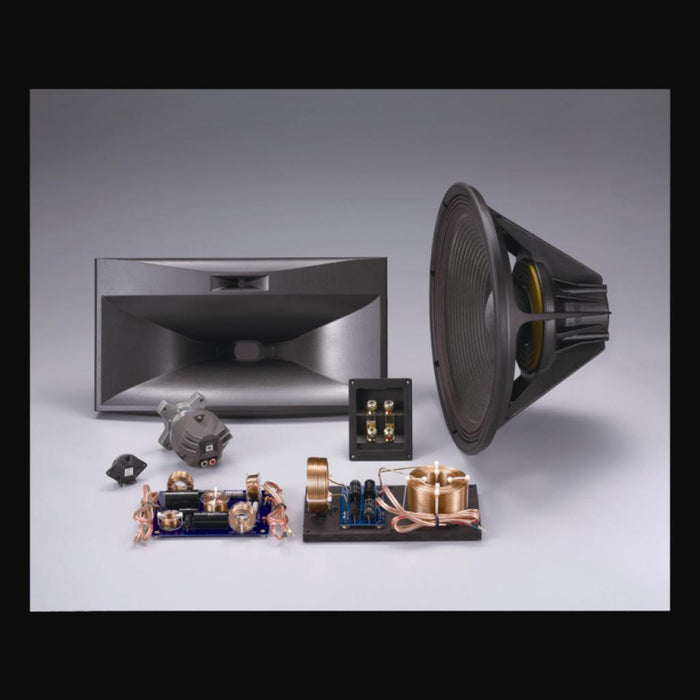

At its foundation, the S4700 uses an all-new cast-frame 15-inch woofer (2216Nd) with a powerful dual 3-inch voice coil and neodymium motor structure for outstanding balance with the horn-loaded compression drivers.

At its foundation, the S4700 uses an all-new cast-frame 15-inch woofer (2216Nd) with a powerful dual 3-inch voice coil and neodymium motor structure for outstanding balance with the horn-loaded compression drivers.

Mid- and high-frequencies are reproduced by a pair of titanium diaphragm compression drivers and a single-piece, SonoGlass® dual horn assembly. The 2-inch Aqua-Plas™-coated titanium diaphragm compression driver (175Nd-3) is mated to a 90° x 60° Bi-Radial® horn and delivers mid- and high-frequencies with lifelike dynamics and startling realism while an ultra-high frequency 0.75-inch titanium diaphragm compression driver (138Nd) with a 60° x 30° Bi-Radial horn recreates critical air and spaciousness.

Premium-quality network components and dual binding post inputs ensure audiophile performance in any application.

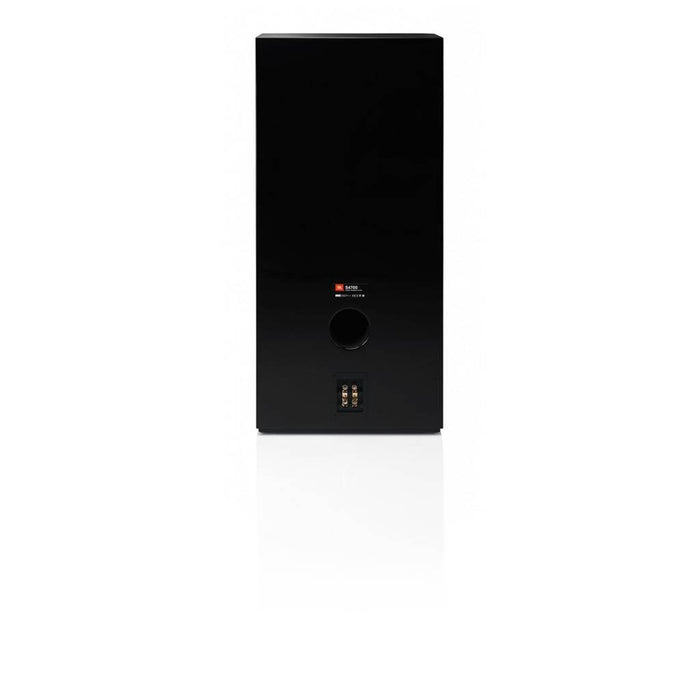

The attractive furniture-grade cherry wood veneer enclosure is internally braced at critical points and is tuned via a rear-firing port.

The S4700 is intended for use in high-performance 2-channel audio systems or as an LCR loudspeaker in a JBL Synthesis multi-channel home theater installation.

  • Type: 3-way floorstanding speaker
  • LF: 15" pure pulp + dual 3" voice coils
  • Neodymium motor and cast aluminum frame
  • HF: 2" Aquaplas-coated Titanium diaphragm
  • HF Horn: 90° x 60° Sonoglass Bi-Radial
  • UHF: 0.75" Titanium diaphragm compression
  • UHF Horn: 60° x 30° Sonoglass Bi-Radial
  • Cabinet: Internally-braced
  • Bass-reflex: single rear-firing tuned port
  • Dual binding posts for bi-wire or bi-amp
  • Freq Response: 38Hz – 40kHz (@-6dB)
  • Sensitivity: 94dB (2.83V @1m)
  • Power handling: 300 Watt RMS
  • Crossover Frequencies: 800Hz, 12kHz
  • Nominal Impedance: 6 Ohm
  • Dimensions (HWD): 1068 x 500 x 371mm
  • Weight: 54.5kg (120 lbs)
