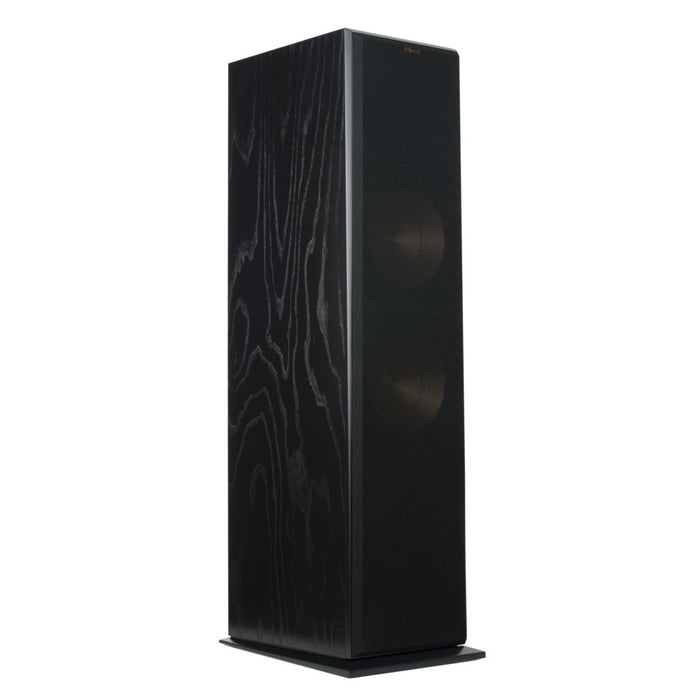

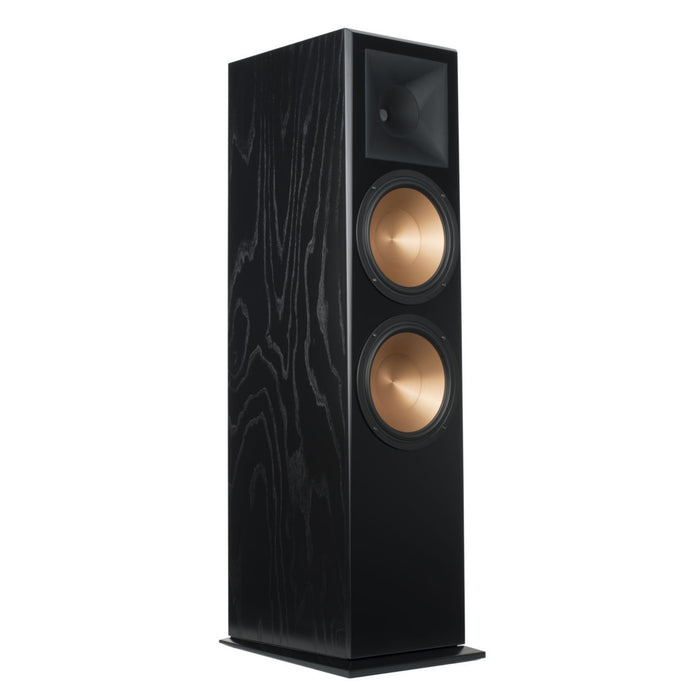

Klipsch RF-7 III Floorstanding Speaker (Pair)

Featuring an all-new titanium compression driver, 90x90 compressed molded-rubber Tractrix horn, redesigned bifurcated cabinet, cast basket Cerametallic woofers and finished in a premium, furniture-grade wood veneer - the RF-7 III floorstanding speaker champions our legendary, high-performance Klipsch sound.

Key Features

• All-New 1 3/4" Titanium Compression Driver
• 90x90 Compressed Molded-Rubber Tractrix Horn
• Redesigned Bifurcated Cabinet
• Dual Tractrix Ports
• Dual 10" Cast Basket Cerametallic Woofers
• Premium Furniture-Grade Wood Veneers
• Assembled in Hope, AR

DESIGNED AND MADE IN THE USA USING DOMESTIC AND IMPORTED COMPONENTS

The Klipsch RF-7 III speaker is a testament to the quality that Klipsch demands from each and every one of its audio products. The RF-7 III enclosure is made in the USA, by proud craftsmen in Hope, Arkansas. Just like Paul W. Klipsch (PWK) intended.

NEW 1 3 /4 TITANIUM DIAPHRAGM COMPRESSION DRIVER

The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.

90° x 90° TRACTRIX® HORN

The redesigned Tractrix Horn utilizes a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The compressed molded rubber construction adds high frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.

SPUN COPPER CERAMETALLIC WOOFERS™

Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.

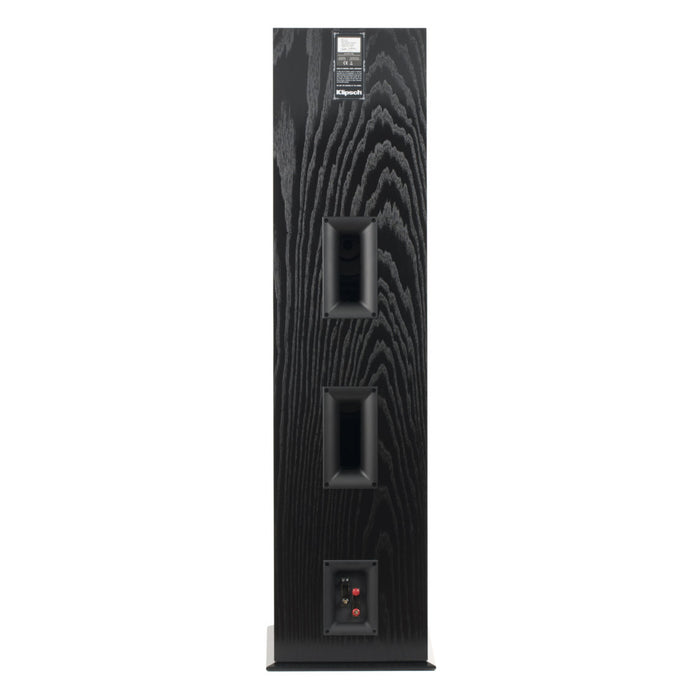

NEW TRACTRIX® PORT

Utilizing Tractrix geometry, the new RF-7 III ports allow for the most efficient air transfer from the cabinet — for the cleanest, most powerful low frequency response on the market.

DUAL CHAMBERED ENCLOSURE DESIGN

The new bifurcated enclosure allows each 10” driver and port to work independently from the other. This improves the linearity of both drive systems, and minimizes standing wave problems inside the cabinet that can cause frequency anomalies in the sensitive midrange frequencies.

CAST FRAME WOOFER DESIGN

Each 10” woofer feature a heavy-duty cast aluminium frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure design to eliminate modulation of the magnetic flux resulting in improved linearity of cone movement.

FURNITURE GRADE WOOD VENEERS

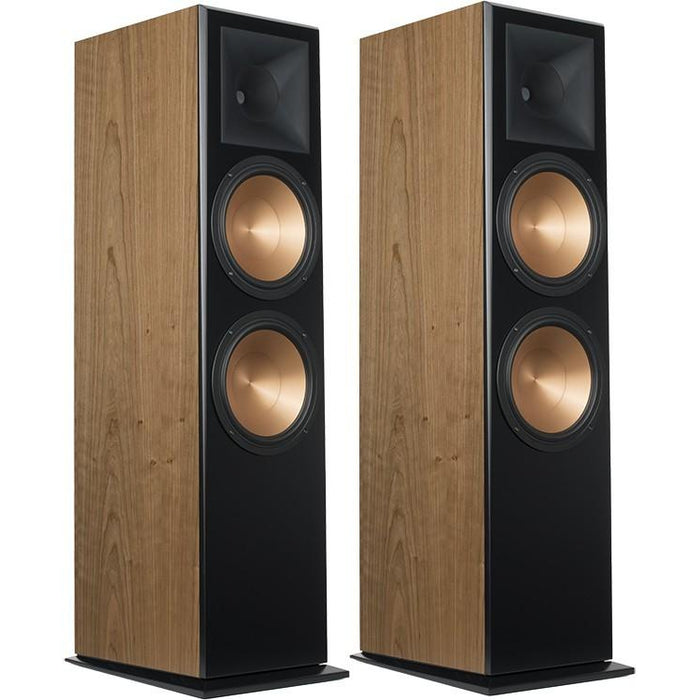

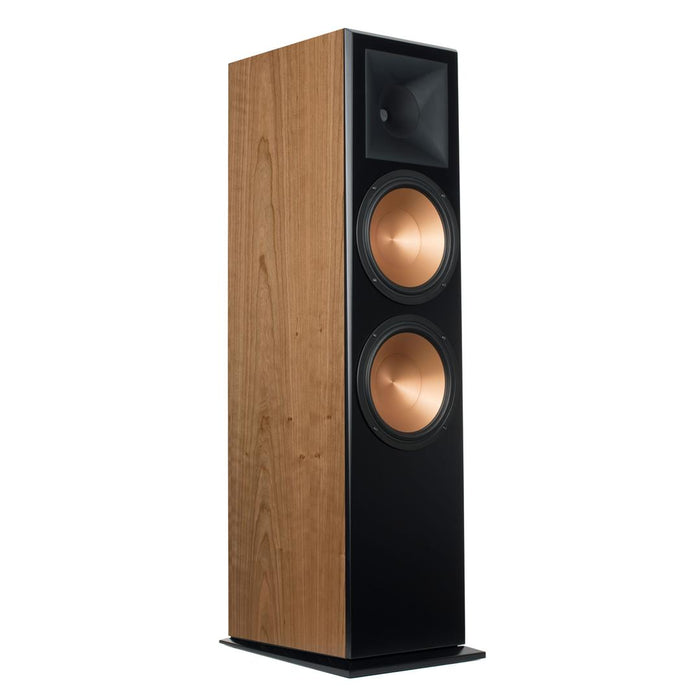

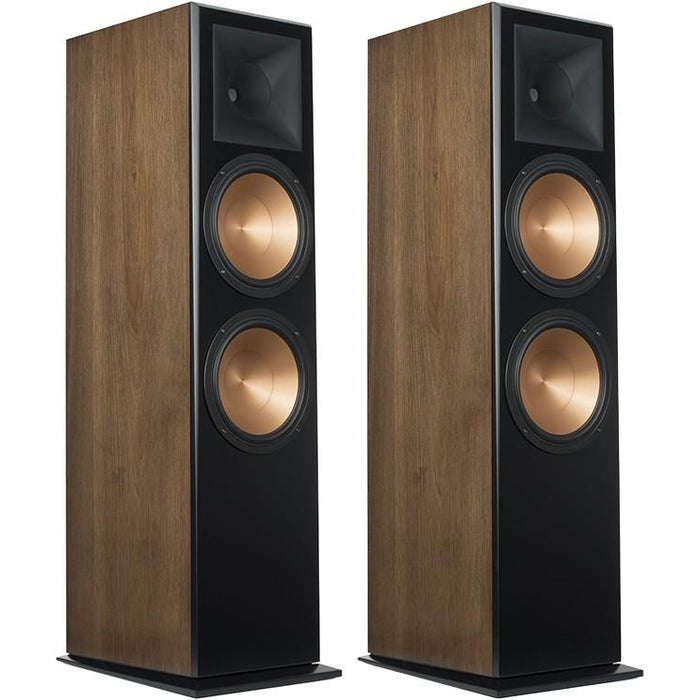

RF-7 III enclosures all utilize furniture grade wood veneers and are available in Black Ash, Walnut & Cherry (Special Order)

Specifications

Frequency Response:	35-25kHz +/- 3dB
Power Handling:	250W / 1000W peak
Sensitivity:	100dB @ 2.83V / 1M
Nominal Impedance:	8 Ω Compatible
High Frequency Horn:	8.5” square 90˚ x 90˚ Tractrix® Horn
High Frequency Driver:	1.75” (4.45cm) titanium diaphragm compression driver
Crossover Frequency:	1,300 Hz
Low Frequency Driver:	Two 10” (25.4cm) Cerametallic cone woofers
Inputs:	Dual binding posts / bi-wire / bi-amp
Enclosure Type:	Dual chambered, bass-reflex — via dual rear-firing Tractrix ports
Height:	49” (124.5cm) including plinth
Width:	13.875” (35.2cm) including plinth
Depth:	17.875” (45.4cm) including plinth
Weight:	97 Ibs (44.1kg)
