Marantz HD-AMP1 Amplifier

by Marantz
Original price €1,149.00 - Original price €1,149.00
Original price €1,149.00
€1,149.00
€1,149.00 - €1,149.00
Current price €1,149.00
Color: Black
Available to order (with lead time)
For latest lead times or to put down a deposit please contact us
In a rush? See what's available for immediate dispatch

The Marantz HD-AMP1 offers a powerful yet sophisticated sound from modern and legacy sources in a beautiful small-format appeal. It accompanies the HD-DAC1 Headphone Amplifier with USB-DAC in the reborn Marantz MusicLink Series.

This newly-developed Marantz HD-AMP1 is a High-Class compact amplifier, with superb, elegant, classic looks. But don’t let that misguide you, its advanced switching amplifier technology blasts out an ear-splitting 70W at 4ohms, while its dual crystal clock and discrete DAC post filter with Marantz HDAM-SA2 modules make standard counted sound feel as incredible as high-resolution audio.

This new amp also gives you the unique Marantz Musical Digital Filtering (MMDF), with two selectable filter characteristics to cater for different tastes and music. Each handles even the minutest of detail with loving care within the digital audio signal. As today’s new media not only comes in 44.1kHz/16 bit resolution – similar to the CD format, Marantz developed the digital section to handle signals of up to 384kHz/32bit resolution and DSD 2.8MHz / 5.6MHz / 11.2MHz.

Optical and coaxial digital inputs are ready to connect a TV or set-top box, and there is a USB-B port to stream music directly from your PC or MAC. iDevices can also be connected via the USB port on the front. To safeguard quality when connected to a computer, we built extended isolation around the USB-B input to eliminate the chance of high frequency noise generated by the computer entering the HD-AMP1. Information on volume, input, resolution, and more is shown on the stylish Marantz Porthole Display. While the solid aluminum front is supported by a double layer bottom plate and retro-style side panels. Welcome to the world of compact ecstasy.

Marantz MusicLink Series

Marantz again amplifies its dedication to pure musical performance with the rebirth of MusicLink, a product series launched in 1990 with the focus on reproducing the music essentials from small-size, rarely-seen design components. The aim is simple: to bring the listener all the emotion and musical detail of the original sound studio, combined with an elegant appearance and luxuriant feel. It is not a coincidence that the creator of the delightful new MusicLink Series is once again Ken Ishiwata.

Unique Marantz audio performance with audiophile D/A Converter

Don’t get misguided by the compact form factor. The HD-AMP1 delivers 2x 70 W into 4 Ohms, playfully handling even demanding music parts thanks to an ultra-stable power supply and Marantz own Current Feedback technology. The Dual Crystal Clock and a discrete DAC post filter with the company’s highly-acclaimed HDAM pre-amplifier modules make standard counted sound feel as incredible as high-resolution audio. A high-current audiophile SABRE D/A-Converter with no less than 384kHz/32bit processing capability is able to reproduce even the smallest details with ease.

Marantz Musical Digital Filtering

The HD-AMP1 features the unique Marantz Musical Digital Filtering (MMDF), inspired by audiophile reference class technology. For Marantz, using standard digital filter solutions is not an option, as this filtering is crucial to the sound reproduction of digital input signals. As a result, the company invested extensively in gaining expert knowledge, leading into highly-acclaimed Marantz Music Mastering technology used in award-winning Premium Range 11 Series products. Adapted for the HD-AMP1 hardware design, the new solution is called Marantz Musical Digital Filtering. Two selectable, digital filter characteristics cater for different tastes, and each handles even the minutest of detail with loving care in the digital audio signal, transforming new media files into the finest of high-resolution playback.

Special Switching Amplifier Concept

The HD-AMP1 is the first ever Marantz Hi-Fi product that incorporated the concept of a switching amplifier. Up to now, switching (Class-D) amplifiers did show certain limitations which made them not acceptable for demanding Marantz sound engineers to be used in a premium Hi-Fi product. Now, the HD-AMP1 combines the unique Marantz HDAM technologies, the switching amplifier concept and an overall feedback loop, to guarantee a consistent performance with a wide range of loudspeaker types. Compared to regular switching amplifier concepts, the HD-AMP1 does not take the feedback signal at the output of the amplifier module, but right after the LC filter stage. In case the feedback is taken before the LC filter, the connected speaker is not taken into consideration in the amplification process, hence the amplifier reacts very sensitive to the connected speaker, and performance varies. With a carefully designed switching amplifier and the feedback taken after the LC filter the impact of a connected speaker becomes very small. In addition the damping factor defined by the output impedance of the amp and the impedance of the connected speaker is less sensitive to the frequency as well. The high slew rate of the amplifier concept and the high quality LC Filter itself ensure a wide bandwidth and flat frequency response. All adds up to an extraordinary Hi-Fi performance in a compact form factor.

Modern connectivity

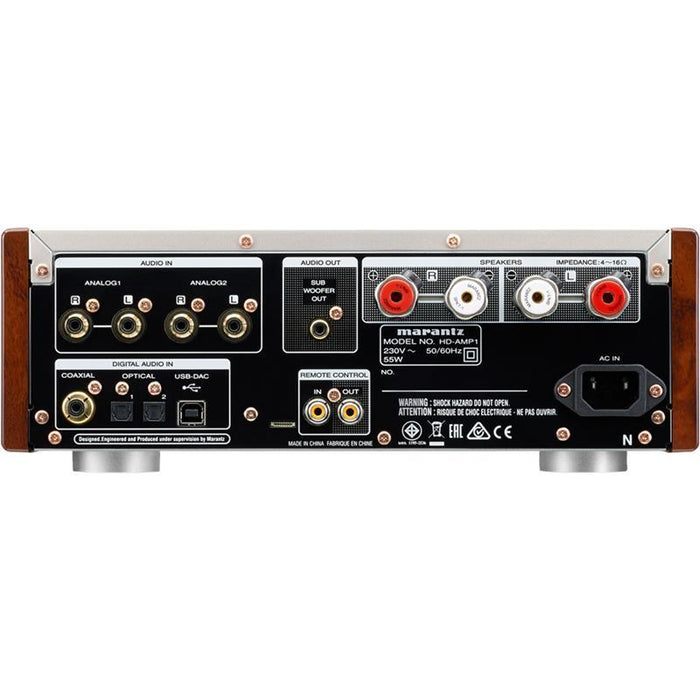

The HD-AMP1 not only builds on the famous Marantz sound, it is also highly connectable. Optical and coaxial digital inputs as well as a USB-B port enable you to stream music directly from a PC or MAC, or connect other digital sources. iDevices can also be connected via the USB port on the front. For even more connectivity, Marantz also included two analogue inputs. The USB-B works in asynchronous mode to support not only 384kHz/32bits high-resolution audio but also the DSD 2.8MHz, 5.6MHz and even 11.2MHz formats for maximized performance and the most direct way to enjoy excellent quality. To safeguard quality when connected to a computer, Marantz built extended isolation around the USB-B input to eliminate the chance of high frequency noise generated by the computer entering the HD-AMP1.

High quality headphone output

For music lovers enjoying their favourite recording via headphone the HD-AMP1 features a high quality headphone stage with dedicated amplifier module HDAM-SA2. To work with a wider variety of headphones the gain factor can be changed from low to mid to high. By this it is possible to drive low to high impedance headphone without any problem.

Elegant look

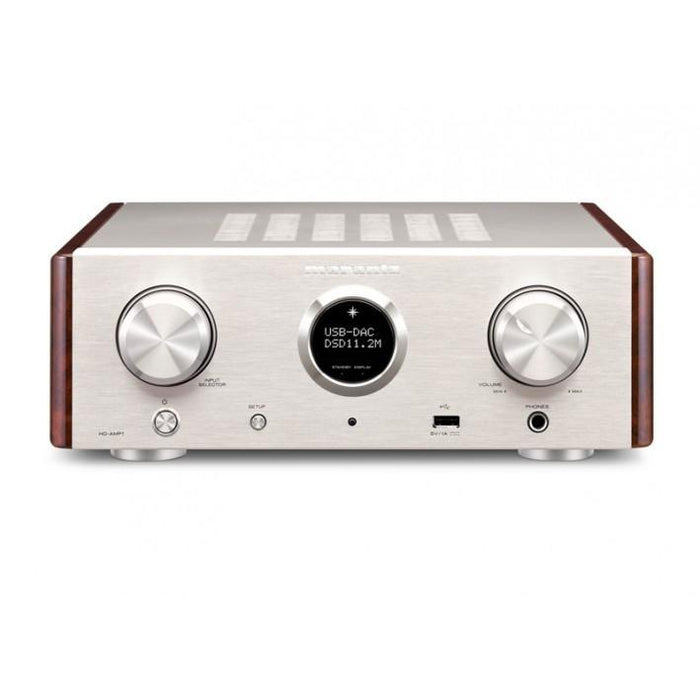

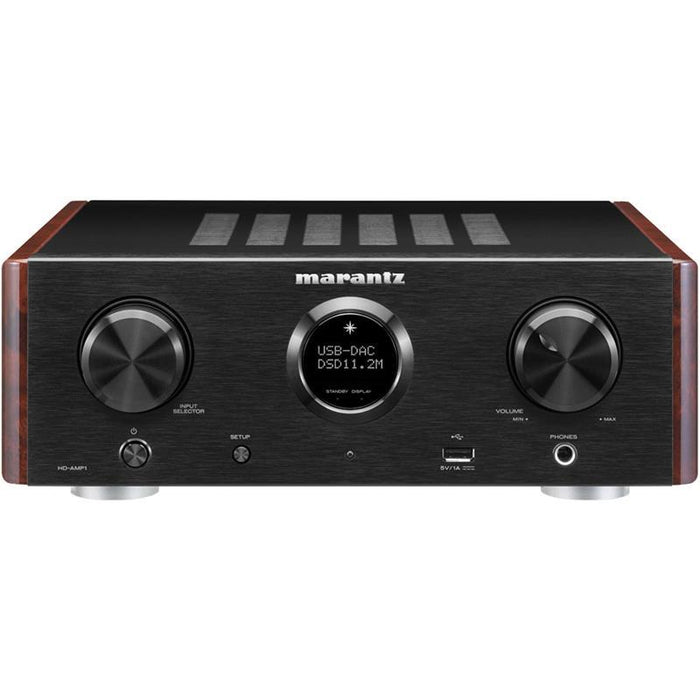

Without doubt, the HD-AMP1 is a feast for the ears. But it also looks good. The solid aluminum front is supported by a double layer bottom plate and side panels with retro-style wooden look. Information on volume, input, resolution, and more is shown on the stylish Marantz Porthole Display, clearly resembling the company’s renowned design. This is pure craftsmanship.

Dual-layer chassis and aluminum die-cast insulator

The HD-AMP1 is housed in a dual-layer chassis featuring the addition of a bottom plate to the main chassis which suppresses any adverse effects of external vibration on sound quality. The feet of the chassis employ aluminum die-cast insulators to further absorb external vibration.

Features

  • Channels 2
  • Current Feedback Topology Yes
  • Phono EQ: Standard / Current Feedback / Constant Current Feedback No / No / No
  • HDAM version SA2
  • Power Transformer: Toroidal / El No / No *SMPS
  • High Grade Audio Components Yes
  • Customised Components Yes
  • Symmetric PCB Layout Yes
  • Aluminium extrusion heat sink No
  • Copper plated chassis No
  • Tri Tone Control (Bass / Mid / Treble) No
  • Balance / Bass / Treble / Loudness o / Yes / Yes / No
  • USB-A: DSD / WAV / FLAC / AIFF / ALAC <=5.6 / 192 / 192 / 192 / 96
  • USB-B DSD Audio Streaming (DoP) <=DSD11.2
  • Asynchronous mode rear USB Yes
  • Bit-perfect transmission Yes
  • Ground isolator for DAC Mode operation Yes
  • Bluetooth / aptX / NFC No
  • Streaming audio from PC No
  • Wi-Fi built in / Ethernet No
  • Internet radio No
  • AirPlay Audio Streaming No
  • Windows Play to No
  • vTuner / Spotify* / last.fm* No
  • DLNA certified No
  • Lossy formats: MP3 / WMA / AAC No
  • Lossless formats: DSD / FLAC192/24 / ALAC96/24 / WAV192/24 / AIFF192/24 No
  • Gapless Playback No
  • Marantz HiFi Remote App No
  • Digital in: USB-B / Yesptical / coaxial / USB-A Yes / 2 / Yes / Yes
  • Sample Rate Digital In 192 kHz / 24-bit
  • DAC chip Sabre ES9010KM2
  • DSD-Audio network streaming No
  • Analog mode No

Others

  • Linear Drive Power Supply No
  • Liniear volume control Yes
  • BI-AMP and Multichannel option No
  • Shottky diodes Yes
  • Input buffer amp (all inputs / CD only) No / No
  • System block shielding: copper / metal / none No / No / Yes
  • Double Layer Bottom Plate No
  • Low noise LCD display No
  • Low Noise OELD display Yes
  • Source Direct Yes
  • Power Amp direct No
  • 5mm aluminium top plate No

Inputs/Outputs

  • Audio Inputs 2
  • Digital in: USB-B / Yesptical / coaxial / USB-A Yes / 2 / Yes / Yes
  • Phono Input: MM / MC No / No
  • Audio Outputs No
  • Balanced In / Yesut No / No
  • Pre-out / Main-in No / No
  • Power Amp Direct IN No
  • Gold Plated Cinch Yes
  • Speaker A / B No
  • Number of terminals 2
  • D-Bus Yes
  • Floating Control Bus (3.5 mm mono jack x 2) No
  • Headphone Out Yes
  • Speaker Terminals Marantz SPKT-1
  • Headphone Gain Control (low / mid / high) Yes

Specifications

  • Power Output (8 / 4 Ohm RMS) 35 W / 70 W
  • Frequency Response 20 Hz-50 kHz
  • Total Harmonic Distortion 0.05%
  • Input Sensitivity: MM No
  • Input Sensitivity: MC No
  • Signal to Noise Ratio: MM / MC No / No
  • Input Sensitivity: High level 200 mV / 22 kOhm
  • Input Sensitivity: Balanced High level No
  • Signal to Noise Ratio: High level 105dB(2V input)
  • Input Sensitivity: Power Amp Direct IN No
  • Signal to Noise Ratio: Power Amp Direct IN No

General

  • Available colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
  • Metal Front Panel Yes
  • Power Consumption in W 55
  • Standby Consumption in W 0.3
  • Auto power off Yes
  • Detachable Power Cable Yes

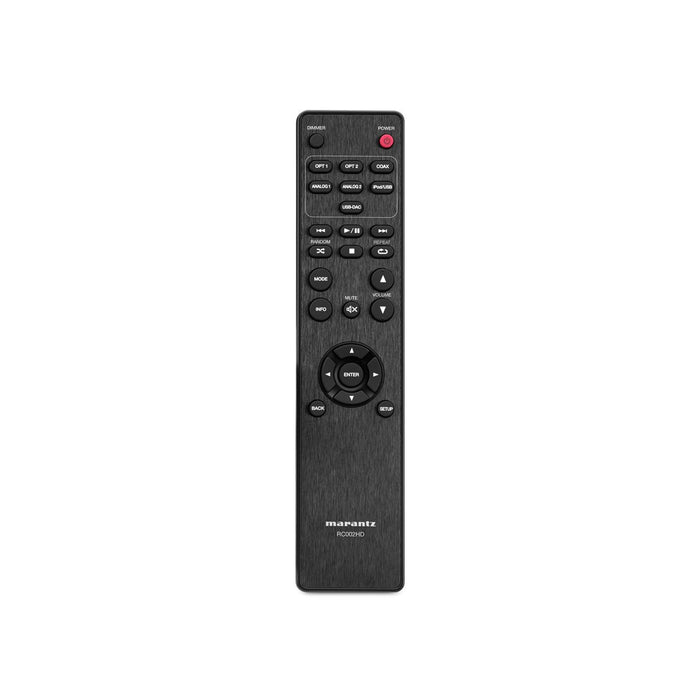

  • Remote Control RC002HD
  • System Remote Function Yes
  • Maximum Dimensions (W x H x D) in mm 304 x 107 x 352
  • Weight in kg 5.8
