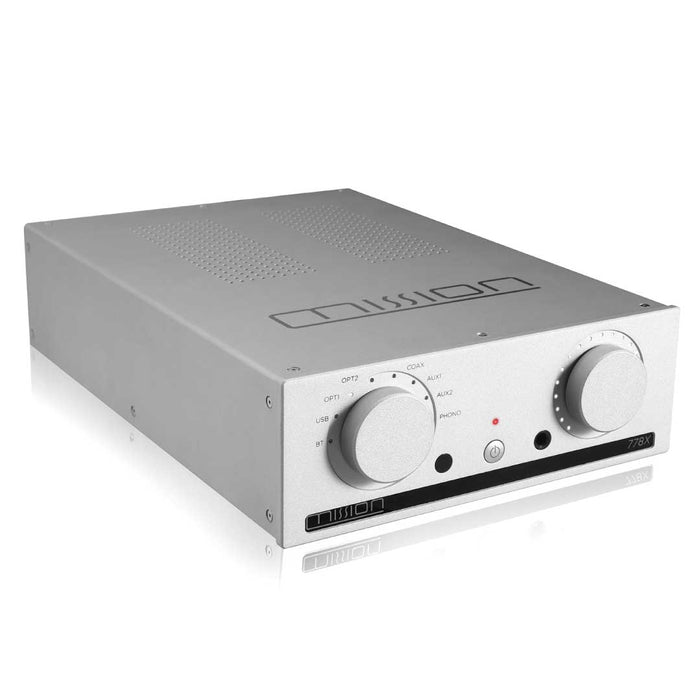

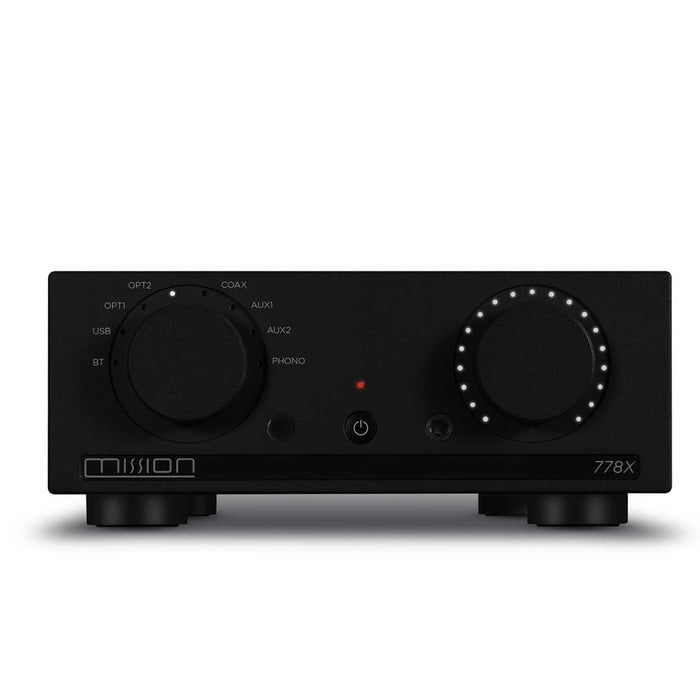

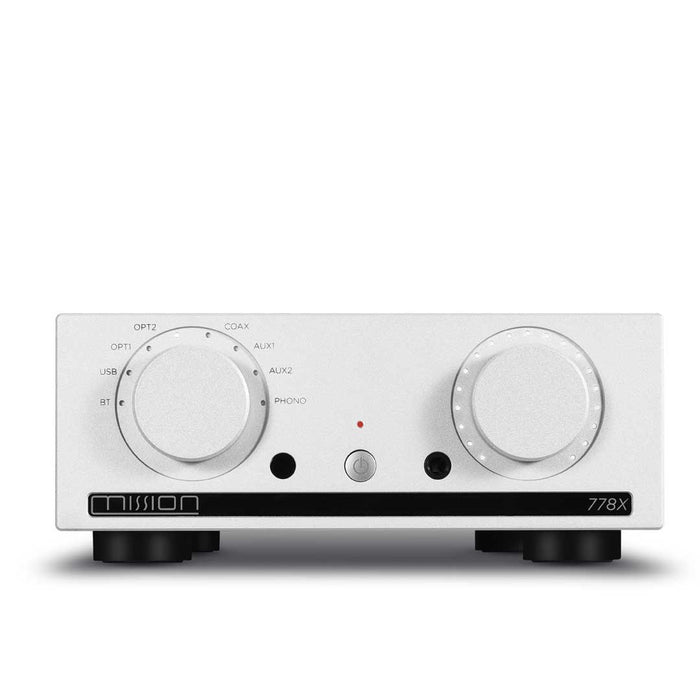

Mission 778x Integrated Amplifier

by Mission
Save €20.00 Save €20.00
Original price €629.00
Original price €629.00 - Original price €629.00
Original price €629.00
Current price €609.00
€609.00 - €609.00
Current price €609.00

Color: Black
Available to order from supplier
For latest lead times or to put down a deposit please contact us
In a rush? See what's available for immediate dispatch

Over the past 45 years, Mission has become famed for loudspeakers that break the norms of price-point, technology and design. Yet, in its illustrious history, Mission was also responsible for some equally prolific hi-fi electronics.

Thus, the Mission 778X is a revisit of a classic Mission amplifier concept that was the Mission 778 – an affordable integrated amplifier that offered simplicity in operation but over-performed in the driving of loudspeakers.

Today’s Mission 778X maintains the influence of simplistic operation, large tractile controls, and a multitude of inputs. It’s a compact, ’80s inspired integrated amplifier that is fully equipped to meet the demands of modern music lovers, from vinyl fans to digital streamers. Modern twists, such as LED level indicators and all-encompassing connectivity options, make the 778X a truly contemporary integrated amplifier. Boasting a genuine 65 watts (@4 ohms) of power via an utterly modern and refined signal path, to standards akin to the exemplary standards to which Mission loudspeakers are developed.

Phono Ready

The phono stage is based around a JFET-based circuit with precise RIAA equalisation. It’s optimised for MM cartridges and as such, it’s a high-quality, low-noise input that eliminates any need for an additional phono pre-amp.

Complementing the typical RCA line inputs are digital and coax connection options and a built-in Bluetooth receiver with an aptX and AAC codec, meaning the 778X offers CD performance via Bluetooth wireless connection. The convenience of streaming music from smart devices, such as phones, tablets or PCs have never sounded so good!

DACs the Way

That’s not all in terms of digital music facilitation. The 778X is also equipped with a high-performance ESS ES9018K2M Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. In the world of digital music files, this means the 778X offers class-leading, ultra-low noise digital audio file compatibility, with a sampling rate of up to 384kHz (PCM) and DSD256!

Headphone Stage

Equal in performance to standalone headphone amplifiers, beyond the price- class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.

Labour of Love

The Mission 778X ’s all round performance is engaging, detailed and refined. Detail, timing and dynamics excel, regardless of source or medium. Designed for the modern-day music enthusiast with a nod to our heritage, the Mission 778X does not discriminate when it comes to expression and enjoyment of your music reproduction.

Specifications

Design & Core Technology:

  • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
  • ESS Sabre32 ES9018K2M Reference Chip
  • Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) Bluetooth 5.0 (aptX / AAC) Support
  • Dedicated High-performance, Low-noise MM Phono Stage
  • Headphone AMP With High-speed Output Signal Transition
  • USB Upgrade Support
  • Large Tractile Controls With LED Level Indicators

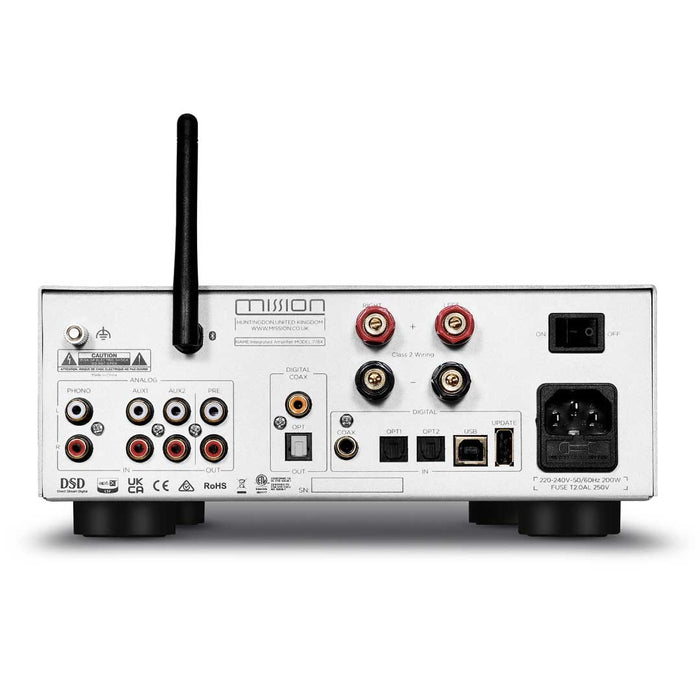

Inputs:

  • 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
  • 2 x AUX,1 x RCA (Phono MM)

Outputs:

  • 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)

Sampling Frequency:

  • Optical / Coaxial: 44.1kHz-192kHz;
  • PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256

Preamplifier Section:

  • Gain (max.): +0dB (Line), +47dB (Phono MM)
  • Input Sensitivity: 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
  • Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
  • Total Harmonic Distortion (THD): <0.003%
  • Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
  • PRE Output Level: 2.1Vrms (max.)
  • PRE Output SNR: >110dB (A-weighted)

DAC:

  • D to A Converter: ESS Sabre32 ES9018K2M
  • Resolution: 32-bit
  • Max. Sampling Frequency: Optical/Coaxial: 192kHz; USB: PCM 384kHz / 11.2896MHz (DSD256)
  • Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
  • Output level: (0dBFS, 1KHz) 2.1Vrms

Power Amplifier Section:

  • Gain +31dB
  • Rated Power Output: 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
  • Frequency Response (ref. 1kHz): 20Hz-20KHz (± 0.5dB)
  • Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
  • Input Sensitivity: 540mV (RCA AUX In); 2.5mV (Phono MM)
  • Signal-to-Noise Ratio (SNR): >108dB (ref. 45W, A-weighted)
  • Crosstalk @1K: >80dB (ref.1W)
  • Standby Power Consumption: <0.5W

Headphone Amplifier:

  • Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
  • Output Impedance: 4.7 ohms
  • Load impedance: 20-600 ohms

General:

  • Dimensions (mm) (W x H x D): 236 x 98 x 380.6
  • Carton Size (mm) ( W X H X D): 450 x 392 x 175
  • Net Weight: 6.3kg
  • Power requirements (depending on region): 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
