Musical Fidelity MX-VYNL Phono Stage

Original price €814.00 - Original price €814.00
Original price €814.00
€814.00
€814.00 - €814.00
Current price €814.00
Color: Black
Available to order (with lead time)
For latest lead times or to put down a deposit please contact us
In a rush? See what's available for immediate dispatch

Musical Fidelity MX-VYNL Phono Stage provides your analogue equipment with a super high-performance upgrade. Fully balanced, this model is compatible with any MC (moving coil) or MM (moving magnet) cartridge. It benefits from both traditional RCA connections and fully balanced XLR inputs so that you can connect the MX-VINYl to two turntables simultaneously.

Key Features

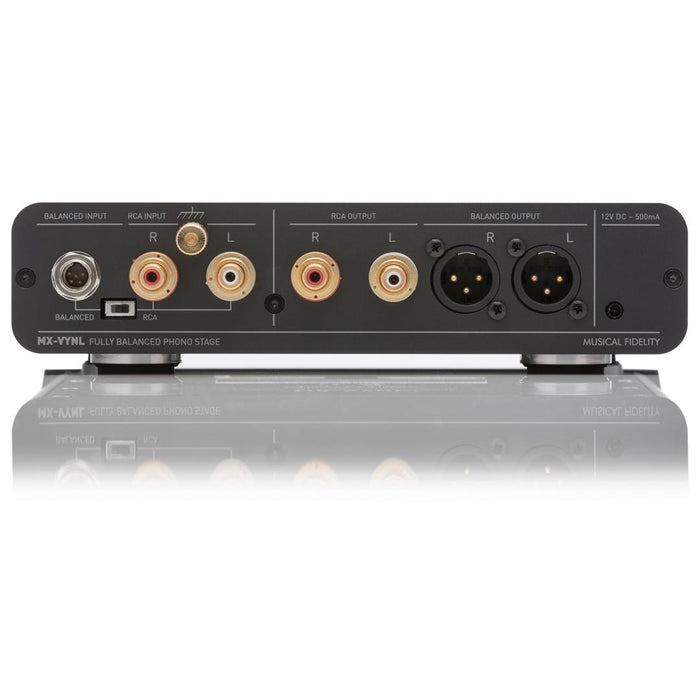

  • Fully balanced XLR and traditional RCA inputs and outputs
  • Fully isolated inputs to switch between two turntables at once
  • Adjustable input impedance on MC whilst it is playing
  • Adjustable capacitance on MM whilst it is playing
  • Very wide overload margin
  • Accurate RIAA to beyond 80kHz
  • Incredible noise ratio
  • Low impedance output
  • State of the art SMD technology
  • Beautiful aesthetics and build quality

Award-Winning Phono Stage

Awarded What Hi-Fi Magazine's "Best Phono Stage under £500", the MX-VYNL has been praised for its impressive all round performance. Immediately noticeable is the beautiful design of the MX-VYNL, finished to the most premium level, the build quality is second to none and showcases the engineering excellence of Musical Fidelity.

Captivating Sound

Alongside its attractive looks, the MX-VYNL delivers an incredible musical presentation, highlighting each instrument and immersing you in a sound performance that is dynamic and wonderfully transparent. It handles each note and vocal impeccably, and delivers and articulate performance with details that cannot be faulted.

Ultra-High Performance

There are an array of input impedance settings on offer with the MX-VNYL for use with moving coil cartridges, as well as a range of capacitance options for for moving magnet cartridges. You can easily adjust these settings whilst playing your records, a feature not often seen in competing units. This enables easy experimentation and tuning to discover the optimum setting for all your precious components.

Extremely Accurate

Of course, the MX-VYNL Phono Stage meets Musical Fidelity's high performance standards. It features the brand's acclaimed RIAA correction technology which offers highly accurate results to above 80khz. Boasting remarkably low noise and an incredible overload margin this phono stage can comfortably handle some of the more demanding of cartridges and satisfy the most discerning of listeners.

Musical Fidelity Legacy

Musical Fidelity represents the best in class hifi components. Their catalog of products have been satisfying audiophiles across the globe for more than 30 years due to the reliable sound quality, build finish and gorgeous designs guaranteed from Musical Fidelity. Fusing both traditional and contemporary requirements, their products ensure optimum vinyl listening, hi-res music streaming, and high-quality CD playback for all lovers of music.

Output voltage: 4 Volts RMS single ended from RCA sockets
8 Volts RMS balanced from XLR sockets
Frequency response: RIAA ±0.1dB IEC ±0.1dB
Channel seperation: MM: MC:
SNR A-wtd: MM: MC:
THD: MM: <0.07%
MC: <0.01%
XLR input: MM: 5mV / 2.5mV selectable . 70mV max (23dB headroom)
MC: 0.8mV / 0.4mV selectable. 12mV max (24dB headroom)
Inputs: Balanced Mini-XLR
RCA 1 pair RCA sockets
Outputs: Balanced XLR male sockets EIA Standard RS-297-A
RCA 1 pair RCA sockets
Power: Connector: 1.3mm pin DC power jack
Outboard PSU: 12V/500mA DC
Mains voltages: 100-240VAC 50-60Hz universal worldwide supply
Consumption: <8 Watts
Weight: 1.9kg (unboxed)
Dimensions Width: 220mm
Height: 53mm (including feet)
Depth: 215mm
Accessories: Mains adapter
