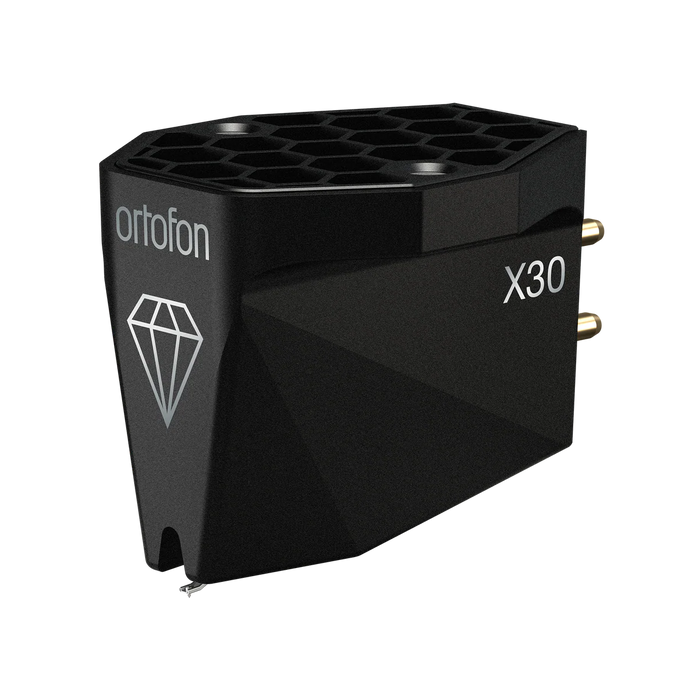

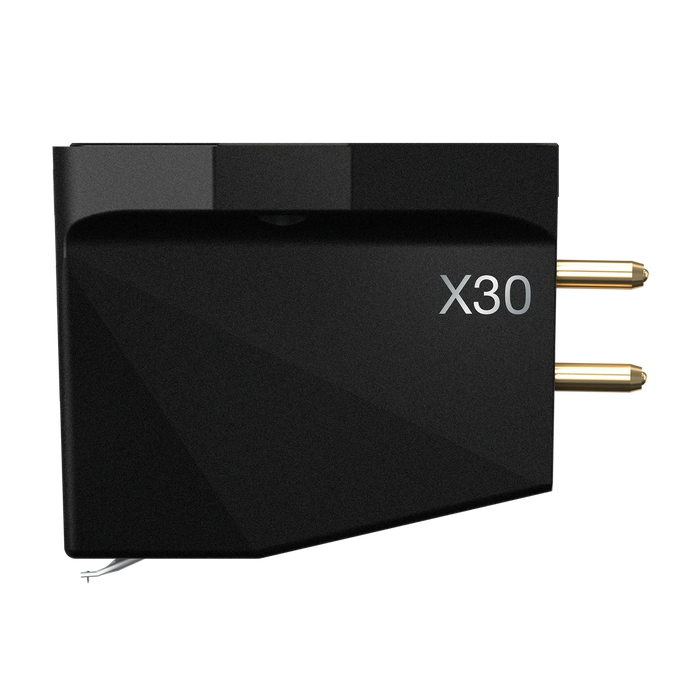

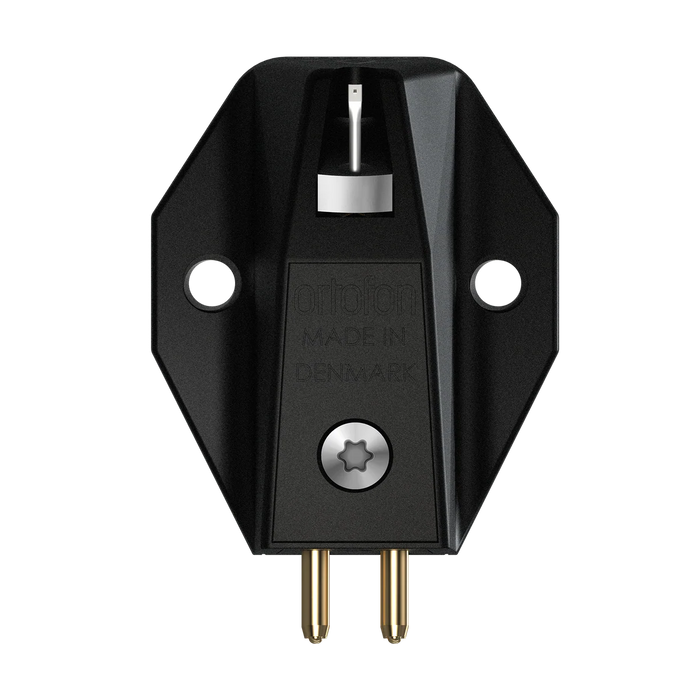

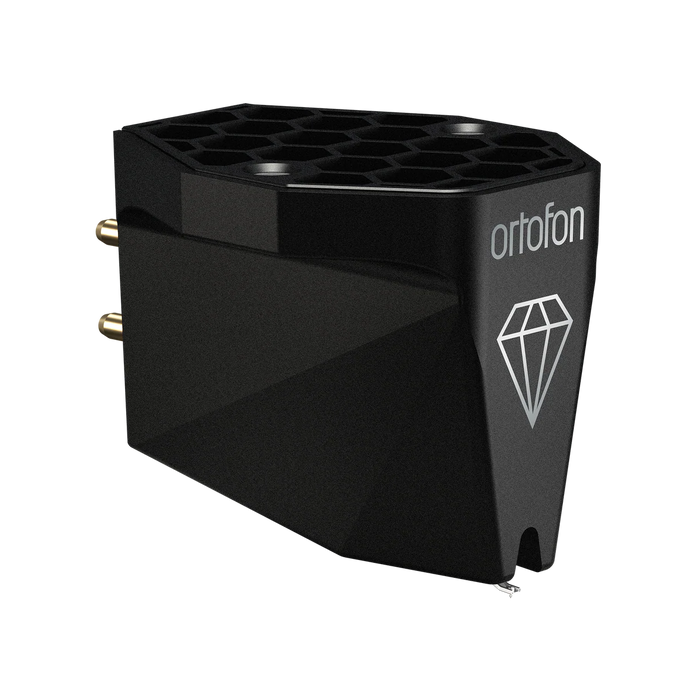

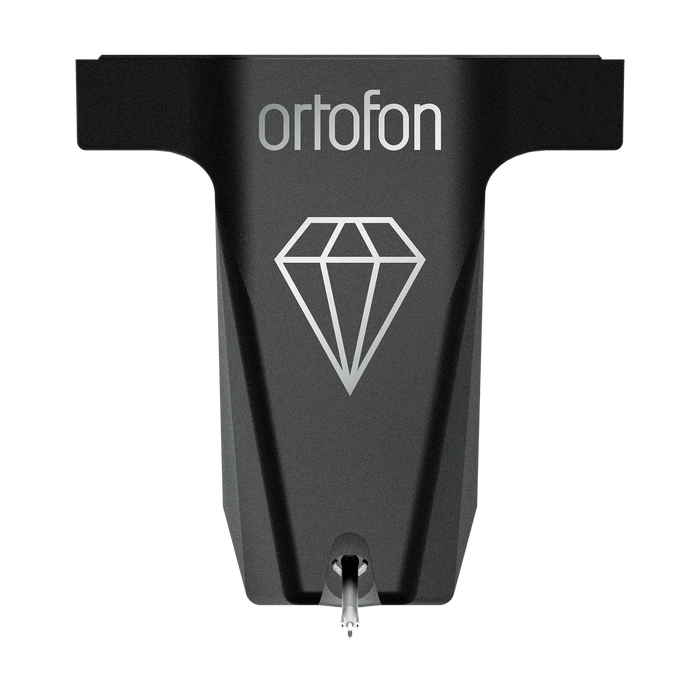

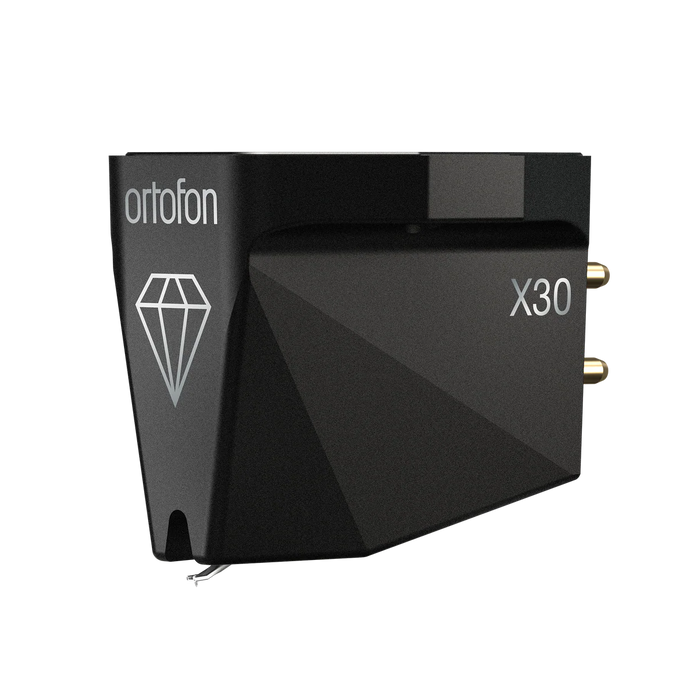

Ortofon MC X30 Moving Coil Cartridge

Ortofon MC X30 Moving Coil Cartridge

by Ortofon
€0.00 - €0.00
€0.00
€699.00
€699.00 - €699.00
€699.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

The Ortofon MC X30 moving coil cartridge pushes vinyl playback into true high-end territory, combining exceptional detail retrieval, natural tonal balance, and impressive dynamic precision. Featuring a Nude Fine-Line diamond stylus and high-purity silver coil system, the MC X30 delivers an open, articulate sound with outstanding clarity across the frequency range. Designed for serious analogue enthusiasts, it extracts remarkable musical detail while maintaining the smooth, controlled presentation Ortofon cartridges are known for.

At the heart of the Ortofon MC X30 is a newly developed magnet system engineered for maximum magnetic efficiency. Combined with coils wound from high-purity silver wire, the cartridge produces a clean and highly accurate signal path with exceptional low-level detail and improved channel separation. The result is a spacious, stable soundstage with precise imaging and impressive transparency.

The Nude Fine-Line stylus profile allows the MC X30 to trace groove information with far greater precision than conventional elliptical designs. This improves transient response, reduces distortion, and reveals subtle textures and micro-details within recordings. Vocals, instruments, and complex passages are reproduced with natural fluidity and excellent tonal realism.

Ortofon has also focused heavily on mechanical stability throughout the MC X Series. A custom-developed damping system using in-house rubber compounds controls unwanted resonance and vibration, improving tracking accuracy and reducing coloration. The cartridge body itself uses an advanced MIM stainless-steel honeycomb structure, delivering excellent rigidity while minimising unwanted energy transfer.

The MC X30 combines technical precision with elegant Scandinavian industrial design. Its refined profile integrates seamlessly with modern tonearms while reflecting Ortofon’s longstanding expertise in moving coil cartridge engineering. Awarded Product of the Year and Best Cartridge Over £500 at the What Hi-Fi? Awards 2025, the MC X30 has quickly established itself as one of the standout moving coil cartridges in its class.

Whether paired with high-end turntables or ambitious mid-level analogue systems, the Ortofon MC X30 delivers a balanced, highly musical presentation with deep insight into recordings. It offers the speed, composure, and refinement expected from premium moving coil designs while remaining engaging and effortless to listen to across every genre.

  • Moving coil phono cartridge
  • Nude Fine-Line diamond stylus
  • High-purity silver coil wire
  • Advanced magnet system with integrated rear magnet yoke
  • MIM stainless-steel honeycomb core structure
  • Custom-developed rubber damping system
  • Frequency response: 20Hz – 20kHz (+/-1 dB)
  • Output voltage: 0.4mV
  • Channel separation: 26dB
  • Recommended tracking force: 2.0g
  • Internal impedance: 6Ω
  • Dynamic compliance: 15μm/mN
  • Recommended load resistance: >50Ω
  • Cartridge weight: 8.6g
  • Awarded What Hi-Fi? Product of the Year 2025 – Best Cartridge Over £500
