Rega Elex MK4 Integrated Amplifier

by Rega
Original price €1,449.00 - Original price €1,449.00
Original price €1,449.00
€1,449.00
€1,449.00 - €1,449.00
Current price €1,449.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

The Elex MK4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance.

Key Features:

  • 72 W per channel into 8 Ω / 90 W into 6 Ω
  • High quality moving magnet phono stage
  • High performance Rega DAC circuit for digital inputs
  • 2 x Digital inputs - 1 x optical and 1 x Co-Axial
  • Headphone output
  • 4 Line level inputs
  • New custom design case
  • Thermal Cut-Out

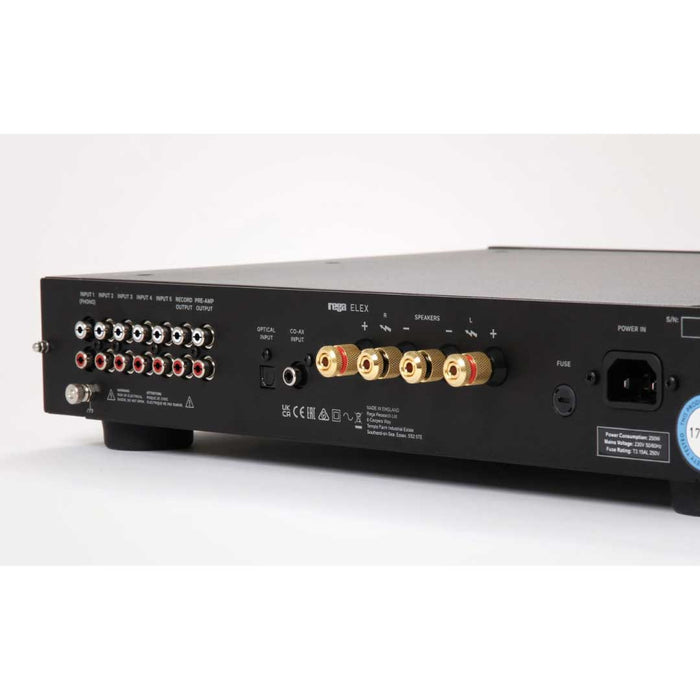

Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex MK4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.

Bringing your music to life

The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage, you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.

Amplification Circuit

Our engineers have re-engineered the entire ELEX circuit board to optimise performance. MK4 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 72W per channel into 8Ω loads. This power is provided by a quiet multi-stage linear supply whilst supply rails for digital and analogue sections are galvanically isolated.

Digital Circuit / DAC

The DAC is based closely on the hugely successful Rega DAC-R circuit. The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. Our engineers have worked exceptionally hard to ensure that the analogue side of the circuit is not affected in any way by the introduction of digital inputs.

MM Phono Stage

A high performance Rega designed integrated moving magnet (MM) phono stage is carefully built into the circuit. The RIAA equalization has been split into two stages to minimise interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.

Headphone Output

We have taken great care to incorporate the headphone socket on the Elex MK4. This has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path ensuring no loss of performance when it is not in use.

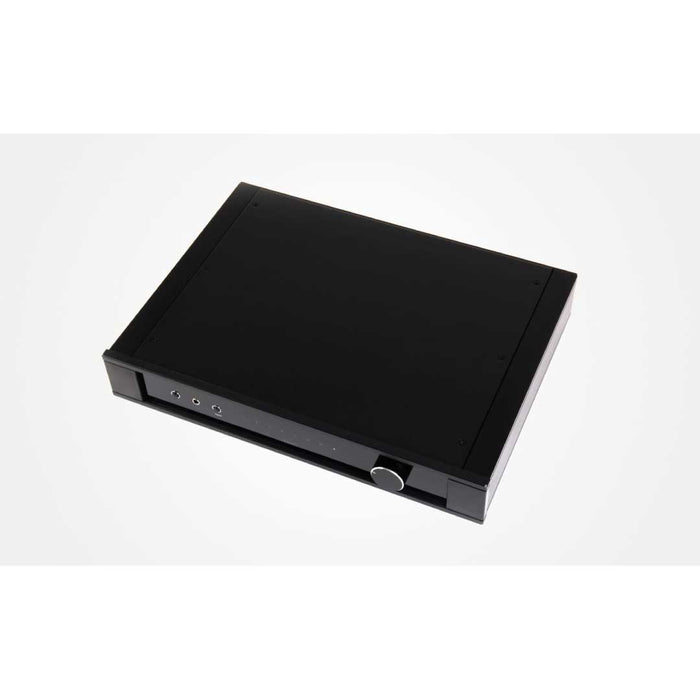

Custom Case

The new custom case design and construction brings the Elex MK4 inline with the rest of the Rega range and provides improved heat dissipation by using the entire case as an ultra efficient heat sink.

Protection

The Elex MK4 includes Thermal Cut-Out, short circuit protection and DC protection to prevent the risk of damage from excess heat, excessive currents or short circuits.

Specifications

Amplifier Output:

  • Power Amplifier Output (at rated 230/115V supply voltage): 72W per channel into 8Ω / 90W per channel into 6Ω
  • Headphone Output: No load: 11.3V, 300Ω: 8.1V, 54Ω: 3.6V, 32Ω: 2.4V, Source Impedance: 109Ω

Distortion:

THD+Noise (at 1dB below clip into 8Ω measurement bandwidth 22Hz to 22kHz) A-weighted

  • Line Inputs: Typically 0.005% at 1kHz
  • Preamplifier Output: Typically 0.002% at 1kHz

Frequency Response:

  • Bandwidth (at 80W into 8Ω)
  • Phono Input: 15Hz (-3dB) to 65kHz (-3dB)
  • Line Inputs: 10Hz (-1dB) to 65kHz (-3dB)
  • RIAA Accuracy: Better than ±0.5dB 100Hz to 20kHz

Sensitivity:

Input Sensitivity (for 72W into 8Ω)

  • Phono Input: 1.6mV load 47k in parallel with 220pF
  • Line Inputs 2-5: 164mV load 10k
  • Power Amplifier Gain: 31.6dB

Output Sensitivity (at rated inputs)

  • Record Output: 164mV
  • Pre-amplifier Output: 625mV

Digital Inputs:

  • Input D1: S/PDIF Isolated 0.5V 75Ω Co-axial
  • Input D2: S/PDIF Optical Toslink
  • Supported Sampling Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192kHz
  • Supported Bit Depths: 16 to 24 bit
  • THD+Noise (DAC Output from Tape Out): Typically 0.004% at 1kHz

Dimensions & Weight:

  • Dimensions (WxHxD): 432 x 82 x 340mm
  • Weight: 11kg
