Revel Concerta2 F35 Floorstanding Speaker (Pair)

by Revel
Original price €2,199.00 - Original price €2,199.00
Original price €2,199.00
€2,199.00
€2,199.00 - €2,199.00
Current price €2,199.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

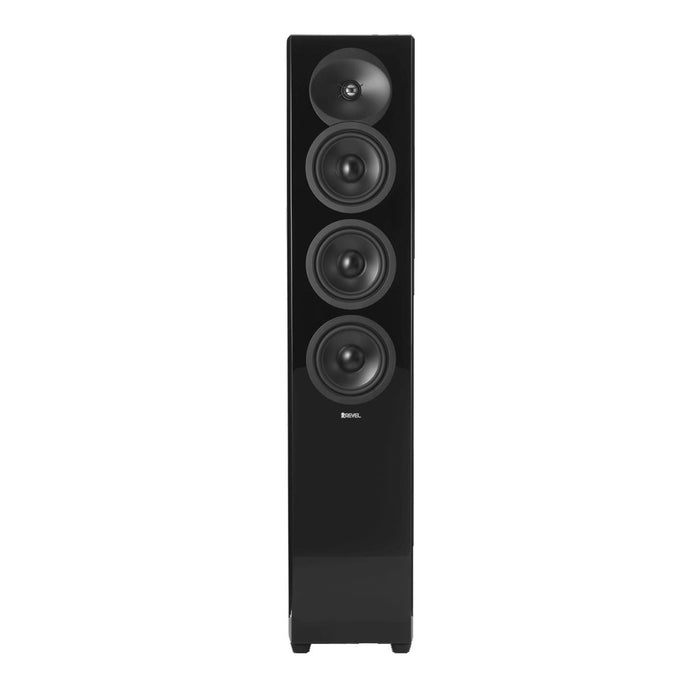

The Concerta2 F35 floorstanding loudspeaker was designed to deliver outstanding accuracy over a remarkably wide frequency range. The 2 1/2-way triple 5.25” floorstanding loudspeaker has the ability to provide performance worthy of the most demanding entertainment systems.

F35
The F35 is a true full range 2 1/2-way 5.25” floorstanding loudspeaker that was designed to provide true high-end sound quality. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

High frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 5.25” Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.

The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure we selected high gloss black and white finishes to highlight the features of this beautiful speaker.

HIGHLIGHTS

  • Derived from Revel’s award-winning Performa3 Series Loudspeakers
  • 5.25"deep anodized aluminum cone woofers
  • 1" Aluminum Tweeter
  • Fourth generation Acoustic Lens waveguides
  • Computer optimized driver positioning and network integration
  • Constant Pressure Gradient Port Design
  • No visible fasteners on the front, top or side panels
  • Magnetic grilles with brushed metallic logos

Specifications

  • DESCRIPTION - 2 1/2-way Triple 5.25" Floorstanding Loudspeaker
  • HIGH-FREQUENCY DRIVER COMPONENTS - 1" Aluminum Tweeter with Acoustic Lens Waveguide
  • LOW-FREQUENCY DRIVER COMPONENTS - 3 x 5.25" Aluminum Cone Woofer
  • INPUT CONNECTIONS - Five-way binding posts
  • RECOMMENDED AMPLIFIER POWER - 30-180W
  • CROSSOVER FREQUENCIES- 575Hz, 1.8kHz
  • LOW FREQUENCY EXTENSION - 55Hz, 46Hz, 35Hz (-3 dB, -6 dB, -10 dB)
  • NOMINAL IMPEDANCE - 6 Ohms
  • SENSITIVITY- 90dB (2.83V @ 1M)

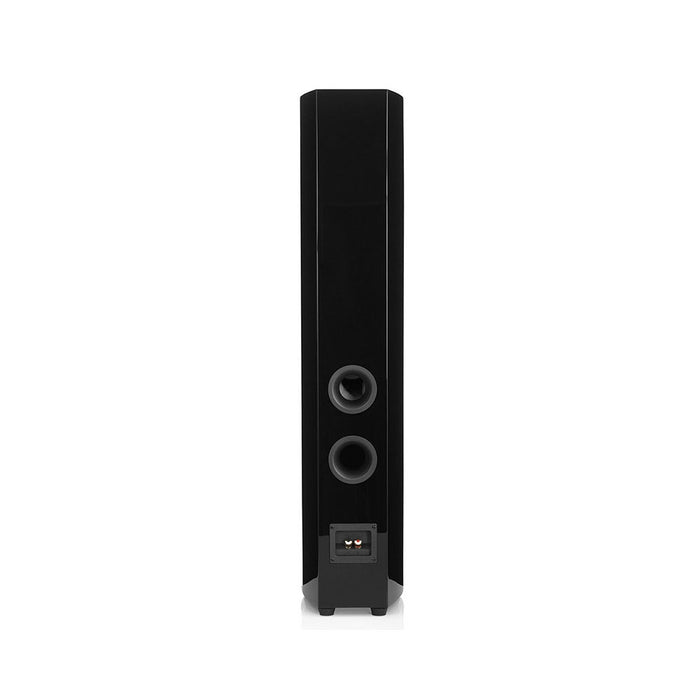

  • ENCLOSURE TYPE - Bass-Reflex via Rear-Firing Port
  • DIMENSIONS - 40.25" x 8.42"x 12.2" (102cm x 21cm x 31cm)—Including Feet
  • WEIGHT - 41 lbs
