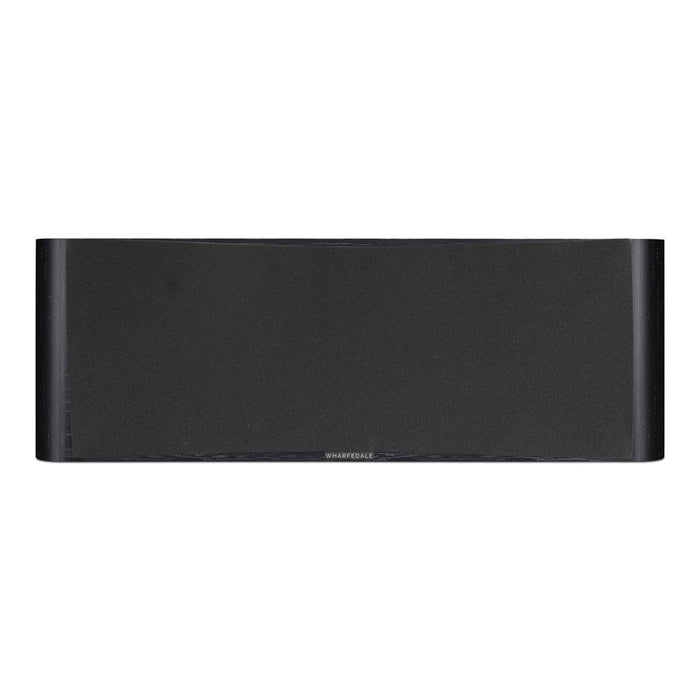

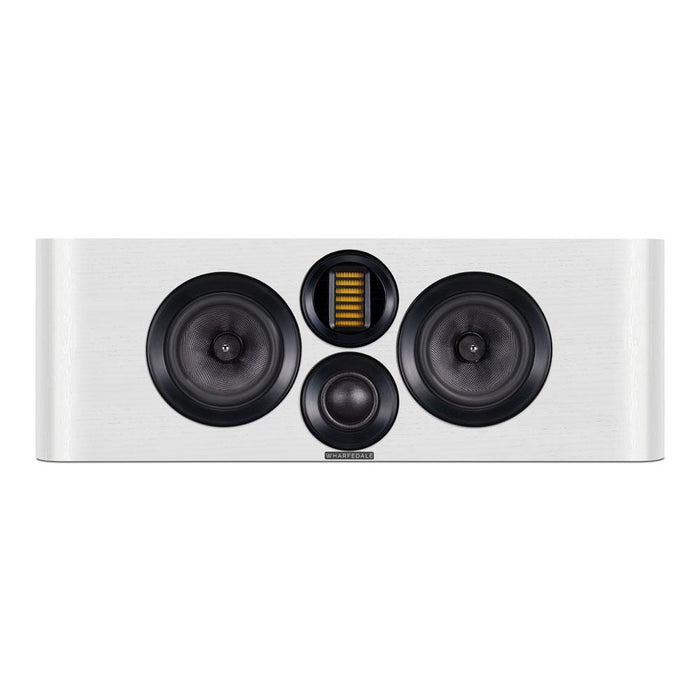

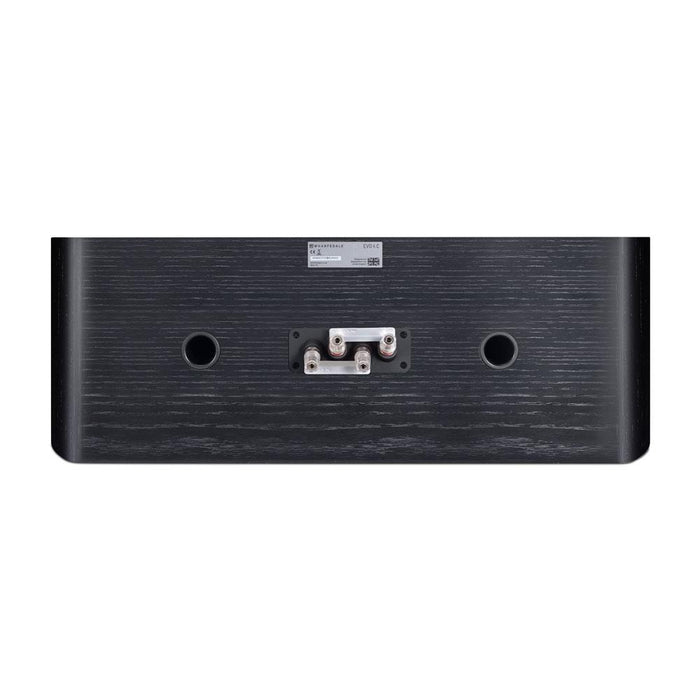

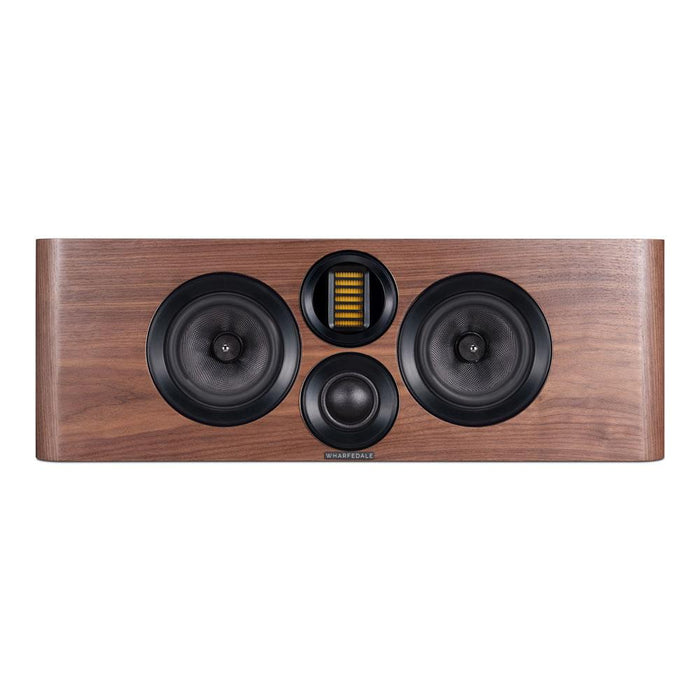

Wharfedale Evo 4.C Centre Speaker

Original price €549.00 - Original price €549.00
Original price €549.00
€549.00
€549.00 - €549.00
Current price €549.00

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: Black Wood

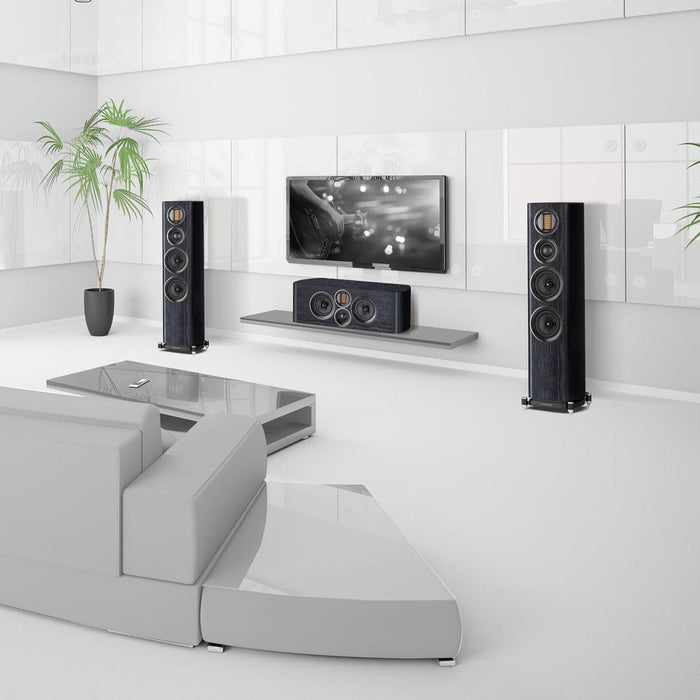

Evo 4.C Centre Speaker are the matching centre speakers to the Evo range of speakers by Wharfedale, ideal for home cinema settings.

The Dawn of a New Standard

Wharfedale’s new EVO4 has grown out of the extensive research and development that produced the ELYSIAN flagship loudspeakers and borrows much of the technology involved in ELYSIAN.

The primary focus is on AMT development resulting in a radically different way of reproducing high-frequency detail efficiently and accurately. Similar cabinet technology to ELYSIAN provides a stable and solid foundation for the drive units with radiused edges to help integrate the driver output with the room acoustics. In addition the unique SLPP bass reflex system, as developed for ELYSIAN, is now incorporated in EVO4.

EVO 4.C AMT

Developed from the advanced AMT in ELYSIAN, EVO4’s Air Motion Transformer treble unit utilizes a radically different way of moving air compared to the conventional dome tweeter. A large, pleated lightweight diaphragm is driven across its surface by rows of strategically placed magnets. Not only is this an efficient way of moving air but it is also very accurate as the diaphragm is under close control of the motor system at all times. The result is a wide bandwidth transducer that achieves low distortion naturally and delivers wonderful musical detail.

EVO 4.C Bass

Utilizing the advanced, low distortion motor system developed for the ELYSIAN bass units, EVO4 marries this to a woven Kevlar cone fitted with a low loss rubber surround, giving a wide bandwidth driver which is equally adept at producing powerful bass in addition to a natural lower midrange quality.

Like ELYSIAN, the bass units are loaded by the most advanced version of the unique Wharfedale Slot Port yet. Christened SLPP (Slot Loaded Profiled Port) the rear output of the bass units is not wasted. Instead, the lowest frequency energy is vented to a slot at the base of the speaker, specially profiled to equalize the high internal pressure to the low pressure in the room.

EVO 4.C Crossover

Combining the outputs of the drivers is an advanced computer-modeled crossover that has been developed over hundreds of hours of listening tests, fine-tuned to make sure that the blend between the drive units is seamless.

Crossover components have been specially chosen for their audio transparency and feature high-grade polypropylene capacitors and laminated silicon-iron and air-core inductors, laid out to avoid electromagnetic interference on a specially designed circuit board.

General Description 3-way centre Speaker
Enclosure Type bass reflex
Transducer Complement 3-way
Bass Driver 6.5"(165mm) black woven Kevlar® cone x 2
Midrange Driver 2"(50mm) soft dome
Treble Driver 30x60mm AMT
AV Shield No
Sensitivity (2.83V @ 1M) 90dB
Recommended Amplifier Power 25-150W
Peak SPL 108dB
Nominal Impedance 8Ω Compatible
Minimum Impedance 4.3Ω
Frequency Response (+/-3dB) 48Hz ~ 22kHz
Bass Extension (-6dB) 42Hz
Crossover Frequency 1.5kHz,3.9kHz
Dimensions (HxWxD) 245 x 750 x (340+10)mm
Net Weight 15.8kg/pcs
